商品の詳細:
お支払配送条件:
|
| フレーム素材: | 金属 | 金属の種類: | 鋼鉄 |
|---|---|---|---|
| 加圧処理木材タイプ: | 熱処理済み | フレーム仕上げ: | 粉体塗装 |
| 特徴: | 容易に、集まっている、支持できる、扱われるFSC友好的なのECO圧力 | 使用法: | 庭の塀、ハイウェーの塀、スポーツの塀、農場の塀、刑務所の塀 |
| タイプ: | の防御フェンス、私道のゲート、塀のアクセス機構囲うこと、格子垣及びゲート | サービス: | 、3Dサンプル モデル模倣する、3D取扱説明書、ビデオはの取付ける |
| パネルの高さ: | 2.1m、2.4m、2.9m | パネル幅: | 2.5m、2.9m |
| 線径: | 3.85/4mm | オープニング: | 76.2×12.7mm |
| 表面処理: | ポリ塩化ビニールは電流を通されて塗るか、または熱浸った | 商業バイヤー: | デパート |
| 色: | 緑RAL6005、黒いRAL9010、ブラウンRAL等 | デザインスタイル: | の農家産業 |
| 電子メール: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| ハイライト: | 358 anti climb mesh fence,heavy duty clear-vu fencing,security wire mesh fence panels |
||

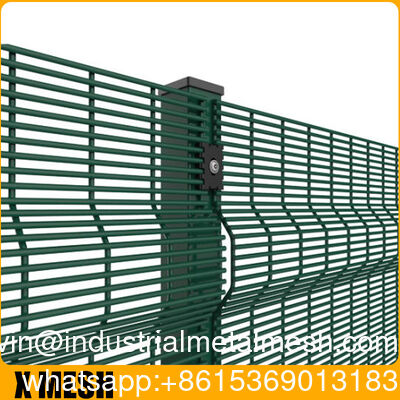

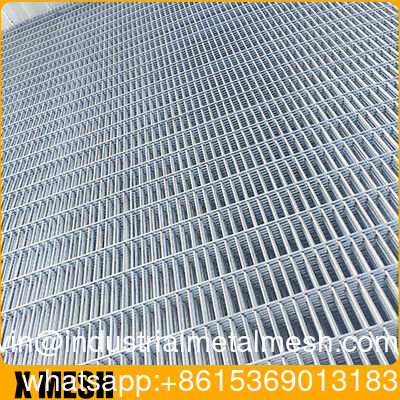

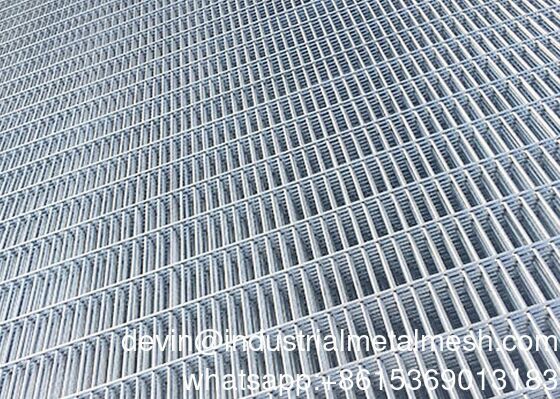

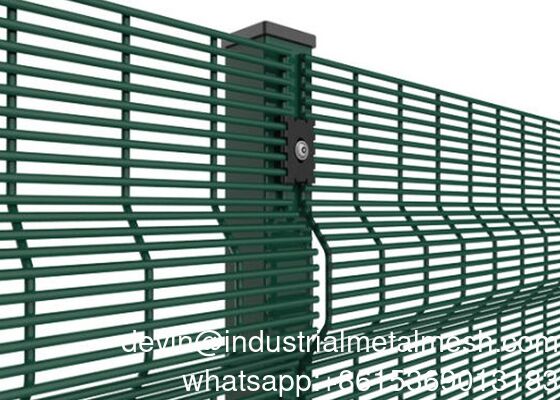

The name "358" comes from its specification: 3"*0.5"*8 gauge, which means approximately 76.2mm*12.7mm*4mm (mesh opening* wire diameter).358 Anti Climb Security Fence is extremely difficult to penetrate through, because the small mesh aperture is effectively finger proof, and extremely hard to attack by using conventional hand tools.
| Mesh Size(mm) | Height(mm) | Width(mm) | Wire Dia(mm) | Post Height(mm) | Surface Treatment |
| 76.2*12.7 75*12.5 75*13 |
2100 | 2515/2750/3000 | 2.0-5.0 | 2700 | Galvanized Powder Coated PVC coated |
| 2200 | 2515/2750/3000 | 2800 | |||
| 2400 | 2515/2750/3000 | 3000 | |||
| 2700 | 2200/2300 | 3700 | |||
| 3000 | 2200/2300 | 4000 | |||
| 3600 | 2200/2300 | 4800 | |||
| 4000 | 2200/2300 | 5200 |
| Horizontal Wire and Vertical Wire With V Fold 358 Security Fence | ||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | |
|
76.2*12.7mm (3''*0.5'') |
3.0mm or |
2.0m or 2.50m |
1830mm | 3 | Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm |
Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm |
| 1930mm | 3 | |||||
| 2030mm | 4 | |||||
| 2230mm | 4 | |||||
| 2430mm | 4 | |||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | ||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | ||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you | ||||||
| Horizontal Wire and Vertical Wire 358 Security Fence | |||||
| Mesh Opening | Wire Diameter | Height of Fence | Width of Fence | Post Type | |
| 12.7x76.2mm (0.5'' x 3'') |
3/3.5/4mm | 1.2-2.5m | 2.0-3.1m | Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm |
40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | |||||
| Color: RAL 6005 green, RAL 7016 gray, All RAL color can be customized. | |||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you | |||||
