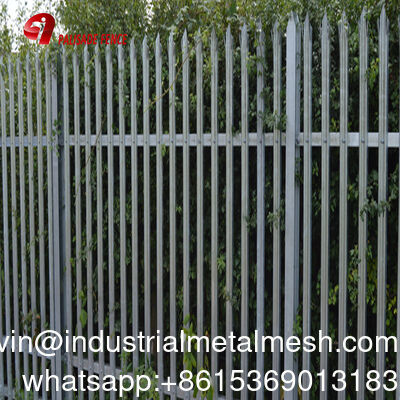

Wholesale Price 2.4m Ornamental Decorative Metal Steel D Pale Palisade Fencing Euro Fence Price

大画像 : Wholesale Price 2.4m Ornamental Decorative Metal Steel D Pale Palisade Fencing Euro Fence Price

商品の詳細:

起源の場所:	河北省、中国
ブランド名:	XMESH
証明:	SGS
モデル番号:	柵のフェンス

お支払配送条件:

最小注文数量:	200個
パッケージの詳細:	パレット
受渡し時間:	15-25日
支払条件:	TT、LC、
供給の能力:	1000個

詳細製品概要

サイズ:	2400 H x 2300 L	表面処理:	亜鉛メッキ
IPEポストサイズ:	100×55mm	青ざめる:	Wセクション
タイプ:	フェンシング,トレリス & amp;ゲート,保護グリルプロファイルまたはクランププロファイル	特徴:	簡単に組み立てられ、環境に優しい、防水、腐敗防止、齧歯動物防止
金属の種類:	鉄,鋼,鉄または電磁	フレーム仕上げ:	PVCコーティング,粉末コーティング,アノイド化
フレーム素材:	金属	加圧処理木材タイプ:	熱処理,自然
色:	、白い、黒い、青い緑、赤い	表面処理:	熱浸した電池用熱浸した電池用熱浸した電池用熱浸した電池用
応用:	フェンス・メッシュ,使用,庭,住宅用	使用法:	保護、庭の装飾、建物、庭の塀/ハイウェー/空港
電子メール:	devin@industrialmetalmesh.com	ワッツアップ:	+8615369013183
ハイライト:	2.4m decorative metal palisade fencing , steel Euro fence with warranty , ornamental wire mesh fence panels

Wholesale Price 2.4m Ornamental Decorative Metal Steel D Pale Palisade Fencing Euro Fence Price

A steel picket fence is also known as a picket-welded fence, ornamental fence, or steel security fence. The panels are manufactured using the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles. Panels are attached with high-strength steel brackets to galvanized and powder-coated square tubular steel posts. Steel Picket Fence is made of high-quality hot-dipped galvanized steel tube. The top vertical tube is pressed to spear by a heavy-duty punch.

The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span.
tower Palisade fence normally includes two types of pales, "W" profile, "D" profile .

Specification of W-Section Type palisade fence
Panel Size		W-Section Pale: 70 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	2/2.5/3 mm	17 pcs
2.4 m	2.75 m	2/2.5/3 mm	17 pcs
3.0 m	2.75 m	2/2.5/3/3.5 mm	17 pcs
W-section Pale: 62 mm
1.8 m	2.75 m	1.5/2/2.5 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5 mm	17 pcs
D-Section Pale: 65 mm
Panel Size		D-Section Pale: 65 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	1.5/2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 5 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5/3 mm	17 pcs

Pales-"W" section

Most useful vetical type of pales for d section galvanized palisade fence, which is always the customers' first choice for pales .

width	thickness	surface treatment	head
65 mm 68 mm 70 mm	2.0 mm 2.5 mm 3.0 mm	powder painted hot dipped galvanized only 450 grams per square meter	triple pointed top single pointed top round top round and notch top

Pales-"D" section

Compared with "W" profile pales, "D" profile is more economical.

Post- H Type

As a connection pipe between the fence panel, H type is the most useful way.

size	thickness	surface treatment	head
100x55mm 100x68mm 120x74mm	3.5 mm 4.0 mm 4.5 mm 5.0 mm	powder painted hot dipped galvanized only 450 grams per square meter	cut sharp

Specifications of security palisade fence:

PALISADE FENCE SPECIFICATIONS

• Post: 2400 High fence - 100×45 TFB
• Post: 3000 High Fence - 150 UB 14.0
• Rail: 50x50x6 EA
• Fish Plate: 40×8 140 long
• Corner Fish Plate: 40×8 215 long W Profile
• 'W' Pale: 71x21x3 W Profile
• Rail Fixings: M12x30 Cuphead Bolt and Shear Nut
• Pale Fixings: M8x25 T Bolt and Shear Nut or - Stainless Steel Huck Pin and Collar
• Mid Bay Support: M12x500 Threaded Rod and 2 x Nuts

1.Instruction Of Pales Section:

------Corrugated "W"section1.5- 3.0 mm thickness, corrugated "D"section 1.5-3.9 mm thickness.

------Corrugated "D" section is used for medium and low security palisade fencing.
------"Angle Steel " palisade fence as normal will use the 3.0-5.0mm thickness steel.

palisade fence-PF001

Steel Palisade Fencing Specification.

Panel Size		W-Section Pale: 70 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	2/2.5/3 mm	17 pcs
2.4 m	2.75 m	2/2.5/3 mm	17 pcs
3.0 m	2.75 m	2/2.5/3/3.5 mm	17 pcs
W-section Pale: 62 mm
1.8 m	2.75 m	1.5/2/2.5 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5 mm	17 pcs
D-Section Pale: 65 mm
Panel Size		D-Section Pale: 65 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	1.5/2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 5 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5/3 mm	17 pcs

Customized Specifications Acceptable. If you have any special requests for the palisade fence, please don't hesitate to contact us.

Core Advantages

1. High Security Anti-Climb Design
Sharp top pales (W section or D section) effectively prevent climbing and intrusion.

2. Strong Steel Structure
Made from heavy-duty steel with high strength, ensuring excellent impact resistance.

3. Corrosion Resistant Finish
Hot dip galvanized or powder coated surface for long service life in harsh environments.

4. Modular Fence System
Includes fence panels, posts, rails, and accessories for easy installation.

5. Suitable for Various Projects
Widely used in industrial, commercial, and infrastructure fencing applications.

Our steel palisade fence Features Include:
1.All pre - galvanised materials used.
2.All materials include high quality powder-coating.
3.14g Black powder coated tek screws or the option of upgrading to anti-vandal fixings.
4.4-hole rail brackets for additional strength for security fencing.
5.A complete range of accessories available. All powder coated to match the panels.

High Security Palisade Fencing application.

Common uses include railway and track protection, schools, colleges and universities, research laboratories, motorways and highways protection, utility companies protection and around industrial sites.
