Plain Woven Stainless Steel Wire Mesh 304 316 for Filtration and Screening

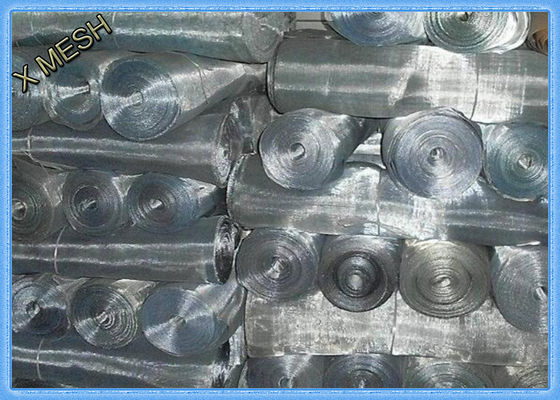

大画像 : Plain Woven Stainless Steel Wire Mesh 304 316 for Filtration and Screening

商品の詳細:

起源の場所:	中国
ブランド名:	QIJIE
証明:	ISO9001
モデル番号:	QJ-004

お支払配送条件:

最小注文数量:	50ロール
価格:	discuss
パッケージの詳細:	要件として
受渡し時間:	15 - 20日
支払条件:	TT/LC
供給の能力:	1週あたりの1000台のロールスロイス

詳細製品概要

技術:	織物	材料:	ステンレス鋼線、316、304
織りスタイル:	/あや織り織り方嘆きなさい	製品名:	編まれる正方形4X4は100ミクロンのステンレス鋼の金網を粉にする
線径:	要件	幅:	通常1M
電子メール:	devin@industrialmetalmesh.com	WhatsAPP:	+8615369013183
ハイライト:	stainless steel wire mesh 304 , woven wire mesh for filtration , 316 stainless steel screening mesh

Plain Woven Stainless Steel Wire Mesh 304 316 for Filtration and Screening

Plain weave mesh is one of the most common metal woven meshes. With high precision mechanical equipment and cutting-edge weaving technology, our plain weave mesh features uniform mesh opening size and good permeability and is widely used in manufacturing mesh screens, filter elements, filter discs, etc. Metallic wires with good corrosion resistance and wear resistance are adopted to extend the service life and improve the performance of woven mesh.

Material: SS 201, 202, 304, 304L, 316, 316L, 321, 430, etc.
Types of weave: Plain Weave, Twill Weave or Dutch Weave
Mesh count: 1-635 mesh
Diameter: 0.0008″-0.08″ (0.02-2.0 mm)
Standard width/roll: 3 ft (36 in.), or 1 m in metric, customization available
Standard length/roll: 100 ft (1,200 in.), or 30m in metric, customization available
Packing: Bubble film, kraft, plastic cloth, wooden case
Use: Filters, sieve, chemical industry, mine industry, paper-making, etc.
Delivery Time: 5 days for stock material

Use:

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

Stainless Steel Wire Mesh

Mesh number: 1 mesh--3500 mesh.

Material: SUS302, 201, 304, 304L, 316, 316L, 310, 310S, etc.

Use:

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

Table: Specification of Plain Weave Mesh
Model	Mesh Count	Wire Diameter		Mesh Opening		Open Area
-	(Warp × Weft)	Inch	mm	Inch	mm	%
HJ-0185	1x1	0.0799	2.030	0.9200	23.37	85
HJ-0276	2x2	0.0629	1.600	0.4370	11.1	76
HJ-0370	3x3	0.0539	1.370	0.2791	7.09	70
HJ-0456	4x4	0.0629	1.600	0.1870	4.75	56
HJ-0563	5x5	0.0409	1.040	0.1590	4.04	63
HJ-0662	6x6	0.0350	0.890	0.1318	3.35	62
HJ-0860	8x8	0.0279	0.710	0.0968	2.46	60
HJ-1056	10x10	0.0251	0.640	0.0751	1.91	56
HJ-1258	12x12	0.0200	0.508	0.0629	1.60	58
HJ-1446	14x14	0.0229	0.584	0.0480	1.22	46
HJ-1651	16x16	0.0179	0.457	0.0444	1.13	51
HJ-1848	18x18	0.0170	0.432	0.0385	0.98	48
HJ-2046	20x20	0.0159	0.406	0.0338	0.86	46
HJ-2444	24x24	0.0140	0.356	0.0275	0.70	44
HJ-3053	30x30	0.0090	0.229	0.0244	0.62	53
HJ-4036	40x40	0.0100	0.254	0.0149	0.38	36
HJ-5037	50x50	0.0079	0.203	0.0122	0.31	37
HJ-6034	60x60	0.0070	0.178	0.0098	0.25	34
HJ-8032	80x80	0.0055	0.140	0.0070	0.18	32
HJ-10037	100x100	0.0039	0.100	0.0060	0.154	37
HJ-12033	120x120	0.0035	0.090	0.0047	0.121	33
HJ-15042	150x150	0.0024	0.060	0.0042	0.109	42
HJ-16546	165x165	0.0019	0.050	0.0040	0.104	46
HJ-18042	180x180	0.0019	0.050	0.0036	0.0911	42
HJ-20034	200x200	0.0021	0.053	0.0029	0.0740	34
HJ-25037	250x250	0.0015	0.040	0.0024	0.0616	37
HJ-30033	300x300	0.0014	0.036	0.0019	0.0487	33
HJ-32531	325x325	0.0013	0.035	0.0017	0.0432	31
HJ-35034	350x350	0.0011	0.030	0.00167	0.0426	34
HJ-40028	400x400	0.0011	0.030	0.00131	0.0335	28
HJ-50026	500x500	0.00098	0.025	0.00101	0.0258	26
HJ-63525	635x635	0.00078	0.020	0.00078	0.0200	25
*We have more types of mesh than what is shown on the chart. Please feel free to contact us if you are looking for a certain opening size.

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

stainless steel wire mesh
