商品の詳細:
お支払配送条件:
|
| 化学組成: | Fe、C、Si、Mn、S、P | 合金かどうか: | 非合金 |
|---|---|---|---|
| プロジェクトソリューション能力: | グラフィックデザイン、3Dモデルデザイン、プロジェクトのトータルソリューション | 応用: | ヴィラ |
| 表面処理: | Hot-DIP電流を通すこと、または未処理塗る | 火格子の長さ: | 1000mm |
| 火格子の幅: | 800mm | 棒幅Xの厚さの忍耐: | 25x3mm |
| 棒形の忍耐: | 明白に、鋸歯状にされたI棒タイプ様式の鋼鉄格子 | 十字棒形: | 、歪んだ円形、棒形 |
| メッシュサイズ: | 30x100mm | 電子メール: | devin@industrialmetalmesh.com |
| WhatsAPP: | +8615369013183 | ||
| ハイライト: | HDG serrated steel grating,galvanized steel grating supplier,welding serrated steel grating |
||

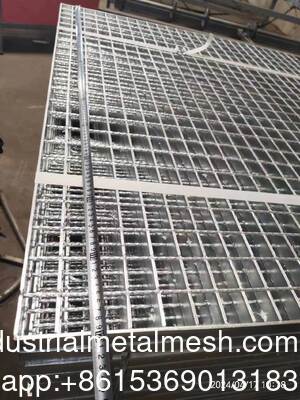

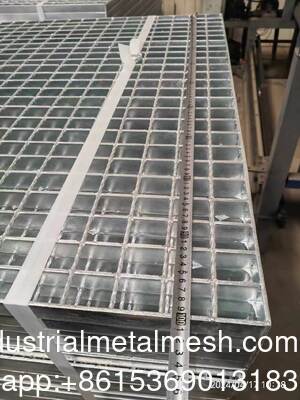

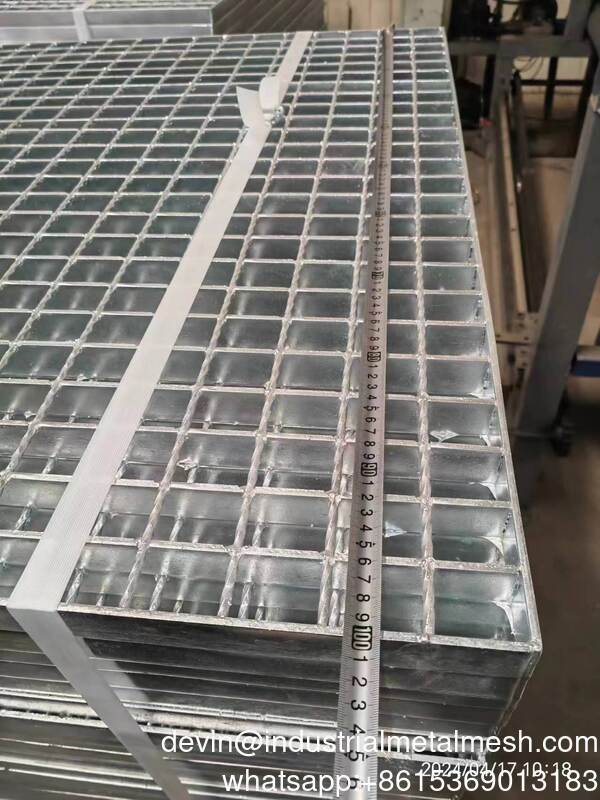

Supplier Welding Serrated Steel Grating China HDG Serrated Steel Grating
| Product Name | Customized Anti-slip Serrated Steel Grating | ||
| Material | Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc. | ||
| Surface treatment | Hot dipped galvanized, polished or untreated |
Grate size | as customer's request |
| Bearing bar width x thickness |
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm | ||
| Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", 11/4"×1/4",11/2"x 1/4"etc. |
||
| Cross bar pitch | 38,50,76,100,101.6mm or custom | ||
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.
Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.
Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.
Packaging Details
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
