商品の詳細:
お支払配送条件:
|
| 化学組成: | Fe、C、Si、Mn、S、P | 合金かどうか: | 非合金 |
|---|---|---|---|
| プロジェクトソリューション能力: | グラフィックデザイン、3Dモデルデザイン、プロジェクトのトータルソリューション | 応用: | ヴィラ |
| 表面処理: | Hot-DIP電流を通すこと、または未処理塗る | 火格子の長さ: | 1000mm |
| 火格子の幅: | 800mm | 棒幅Xの厚さの忍耐: | 25x3mm |
| 棒形の忍耐: | 明白に、鋸歯状にされたI棒タイプ様式の鋼鉄格子 | 十字棒形: | 、歪んだ円形、棒形 |
| メッシュサイズ: | 30x100mm | 電子メール: | devin@industrialmetalmesh.com |
| WhatsAPP: | +8615369013183 | ||
| ハイライト: | galvanized steel bar grating,steel grating drain cover,durable walkway steel grid |
||

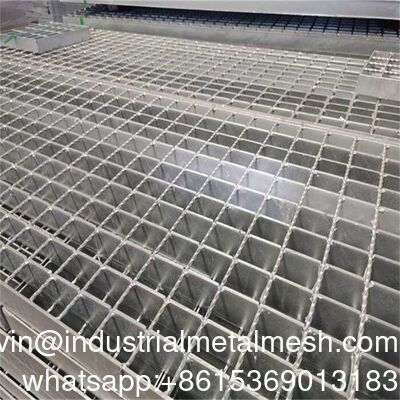

Premium Galvanized Steel Bar Grating/ Bar Grating Drain Trench Cover/ Steel Grating/Steel Grid for Durable Walkway Solutions
|
Learn more about the main components of metal bar grating
|
|
|
Material
|
Carbon Steel , Stainless Steel
|
|
surface treatment
|
Hot dip galvanizing,Painting,Spray coating,self colour
|
|
Product Process
|
Fully automatic pressure welding , manual welding
|
|
Bearing Bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
|
US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
|
|
|
Bearing Bar Pitch
|
12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
|
|
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
|
|
|
Twisted Cross Bar Pitch
|
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
|
|
Steel Grade
|
ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
|
|
Grating Standard
|
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST |
|
Russian Standard
|
|
|
Common spacing of load-bearing flat steel:
|
11, 22, 33, 44
|
|
Common spacing for connecting flat steel:
|
11, 22, 33, 66
|
|
Surface treatment
|
Plating thickness ≥70 μm
|
|
Custom specifications available upon request
|
|
Advantages:
high strength, anti-slip, ventilation and light transmission properties.

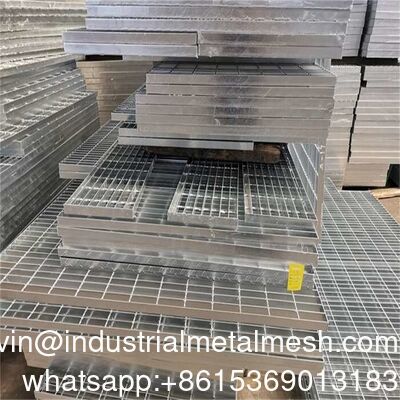

Packaging Details
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
