商品の詳細:
お支払配送条件:
|
| 材料: | pvcで覆われた鋼鉄線 | 線径: | 2.5 mm,3.05 mm,3.76 mm,4.88 mm |
|---|---|---|---|
| メッシュ: | 50×50mm,60×60mm | 身長: | 1.5m,1.8m,2.4m |
| 長さ: | 15.2m / 50フィート | 亜鉛質量: | 60g,120g |
| 電子メール: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| ハイライト: | Galvanized diamond wire mesh fence,PVC coated cyclone wire fence,1-4 inch chain link fabric |
||
Galvanized/PVC Coated 1"-4" Diamond Wire Mesh 5FT Chain Link Fence Cyclone Wire
Product descriptions
The chain link fence is made of high-quality metal wire crocheted, with uniform mesh, flat surface, strong and durable, beautiful and easy to install.
Inner Wire Material
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.
drawing of chain link fence
|
Chain Link Fence Specifications
|
|||||
|
Wire Dia.
|
Material
|
Hole size
|
Roll Height
|
Roll Length
|
Edge woven
|
|
2.5mm
3mm 3.5mm 4mm 4.5mm |
Electric galvanized wire
Hot-dipped galvanized wire Galfan wire PE/PVC coated wire |
40x40mm
50x50mm 60x60mm 75x75mm 100x100mm |
1.2m
1.5m 1.8m 2.0m 2.4m 2.8m 3.0m |
9m
10m 15m 18m 20m 25m 30m |
Ordinary type
Wring type Selvage knuckled |
|
Galvanized Chain Link Fence Post specifications
|
|||||
|
Post view
|
Post size
|
Rails
|
Thickness
|
Mesh Height
|
Post length
|
|
Round post
|
Φ40
Φ48 Φ60 Φ75 |
Φ32
Φ40 Φ48 |
1.5mm
1.8mm 2.0mm 2.5mm |
1.2m
1.5m 1.8m 2.0m 2.4m 2.8m 3.0m |
1.6m
2.0m 2.3m 2.5m 3.0m 3.5m 3.7m |
|
Angle iron
|
40x40mm
50x50mm 60x60mm 70x70mm |
40x40mm 50x50mm
|
4mm
5mm 6mm |
||
|
Surace treatment
|
1.Pre-galvanized tube
2.Galvanized tube powder coated 3.Hot-dipped galvanized |
||||
1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;
2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);

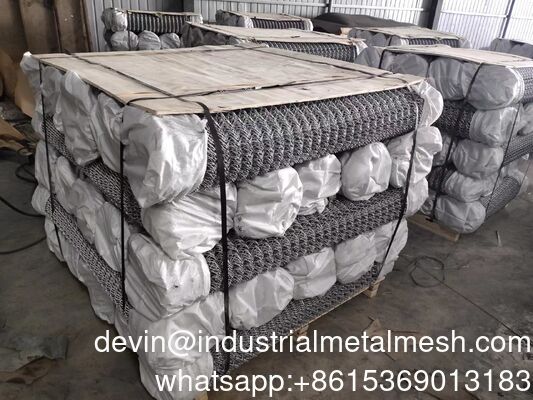

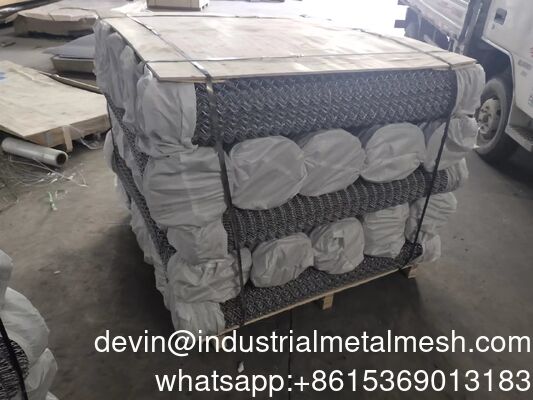

Loading of PVC coated Chain Link Fence
install of chain link fence
4' High x 250' Galvanized Chain Link Fence Packages Include:
pvc coated chain link fence-001
galvanized chain link fence-001
galvanized chain link fence-002
galvanized chain link fence-003
galvanized chain link fence-004
galvanized chain link fence-005
コンタクトパーソン: Mr. Devin Wang
ファックス: 86-318-7896133
