商品の詳細:
お支払配送条件:
|
| 材料: | 炭素鋼線 | メッシュ開口部: | 12×12、20×20、25×25、12×25mm |
|---|---|---|---|
| 線径: | 0.4mm～1.5mm | ロール幅: | 0.4m、0.5m、0.6m、0.8m、1.0m、1.25m、1.5m、2.0m |
| ロールの長さ: | 15M、30M、50M など | 表面処理: | 溶融亜鉛メッキまたは電気亜鉛メッキ |
| モデル番号: | xx-01001 | 応用：: | フェンスメッシュ |
| 電子メール: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| ハイライト: | galvanized welded wire mesh,customized metal mesh,durable welded wire mesh |
||

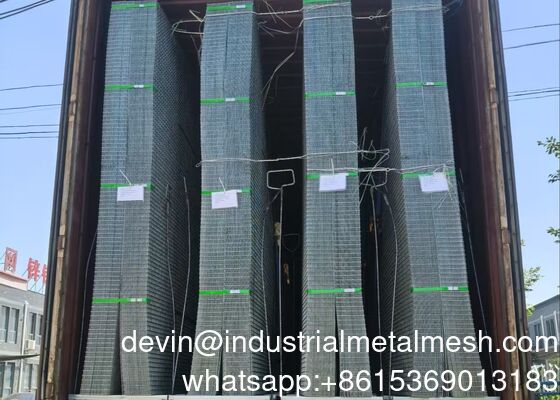

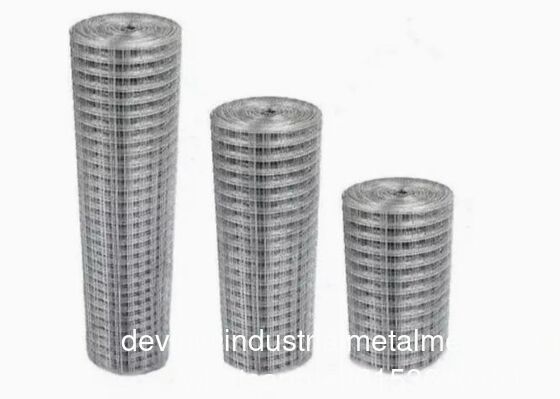

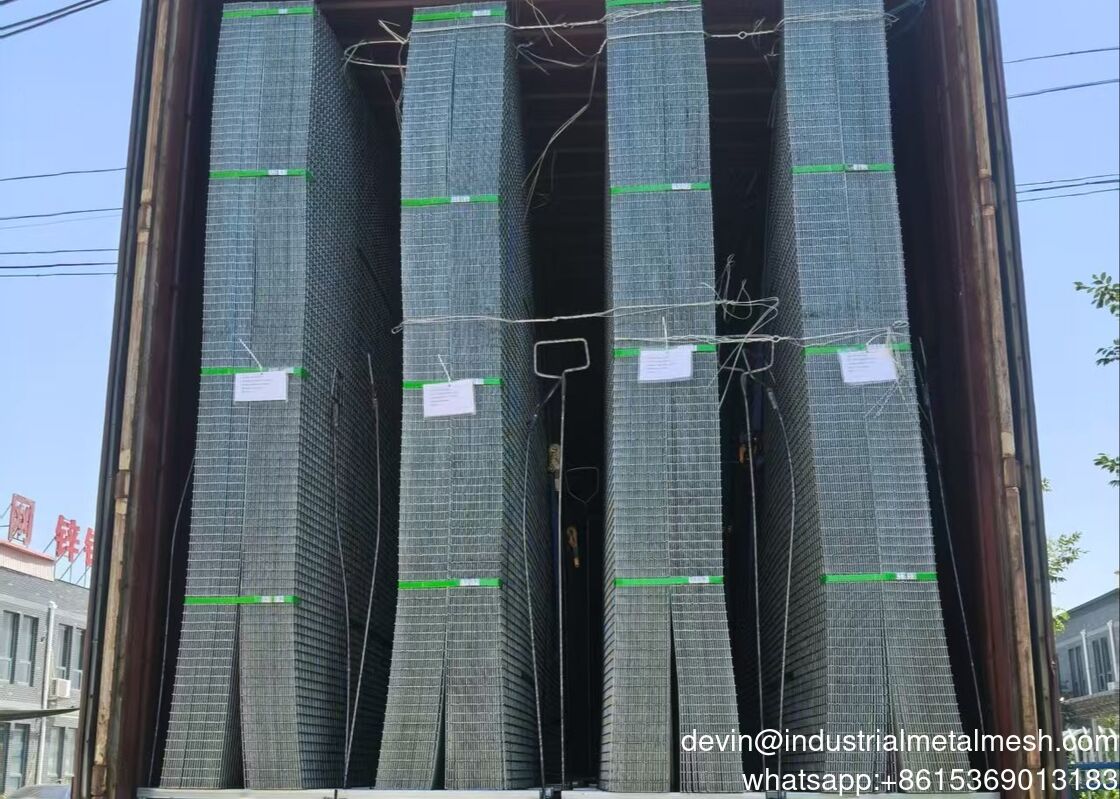

Durable Galvanized Metal Mesh Customized Welded Wire Mesh
Product Description:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| Galvanized Fencing Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
