| 材料: | 炭素鋼ワイヤー、電流を通されたワイヤー | メッシュ開口部: | 1" x1」、1-1/2 " x1-1/2」、2" x2」、2" x1 "等。 |
|---|---|---|---|
| 線径: | 0.4mm - 6.0mm | パネルサイズ: | 1.2x2.4M、1.2x3.0Mの1.8x3.6Mのect。 |
| 表面処理: | PVCコーティング | ポストの高さ: | 1.1M-3.0M |
| 電子メール: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| ハイライト: | PVC-coated galvanized welded mesh fence,3D curved metal fence panel,garden farm welded mesh fence |
||

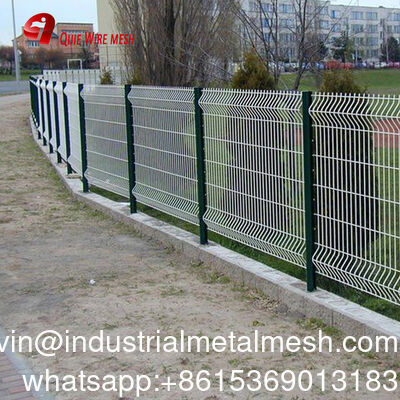

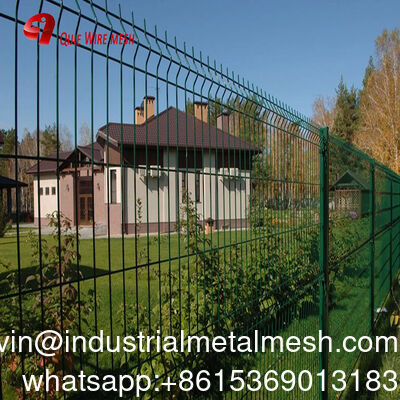

PVC-Coated Galvanized 3D Curved Welded Mesh Fence Panel For Garden Or Farm
Introducing our Outdoor Decorative 3D Curved Welded Wire Mesh, a versatile fencing solution for those seeking both style and functionality. Commonly referred to as the 3D Panel Fence, V Mesh Security Fencing, or Curved Mesh Fence, this product is designed with a perfect blend of simplicity and elegance. The elegant V curves not only provide an aesthetically pleasing appearance but also significantly enhance the stability and robustness of each welded mesh panel, ensuring a secure and enduring fencing option for any outdoor space.
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening |
Wire Thickness |
Panel Width |
Panel Height |
Number of Folds |
Post Type | ||
| 50x100mm 50x150mm 50x200mm 55x200mm 75x150mm etc. |
3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm |
2.0m 2.50m 2.9m |
630mm | 2 | Round Post 48x1.5/2.0mm 60x1.5/2.0mm |
Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm |
Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm |
| 830mm | 2 | ||||||
| 1030mm | 2 | ||||||
| 1230mm | 2 | ||||||
| 1430mm | 2 | ||||||
| 1530mm | 3 | ||||||
| 1630mm | 3 | ||||||
| 1730mm | 3 | ||||||
| 1830mm | 3 | ||||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized | |||||||
| Note: The fence can be customized according to your required if above specifcation is not satisfied with you. |
|||||||
Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.
| 3D curved PVC coated galvanized welded iron wire mesh fence panel | |
| material | steel iron wire,galvanized wire |
| surface treatment | PVC coated ,powder coated |
| color | blue,green,black,white,yellow,grey,etc. |
| wire diameter | 4.5mm,5mm,6mm |
| hole size | 50x200mm,75x200mm |
| fence height | 1.5m,1.6m,1.8m,2m,2.1m |
| fence length | 2m,2.5m |
| post | peach type post,square type post |
