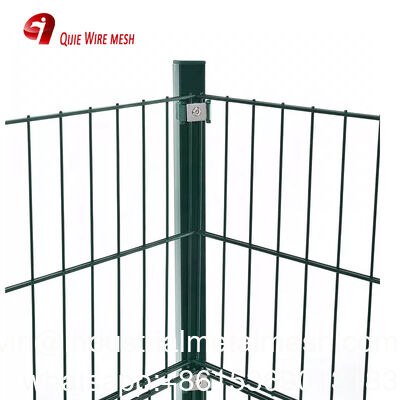

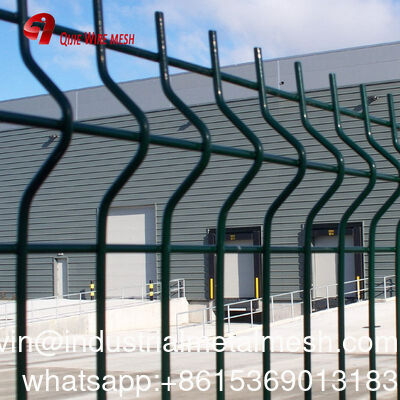

3D Curved PVC Coated Welded Wire Mesh Security Fence with Bending

3D Curved PVC Coated Welded Wire Mesh Security Fence with Bending​

3D bending fence is also known as curved welded fencing, triangle mesh fence, etc. Triangle V bend fence is pretty light yet durable. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.

Wire Mesh Panel Features:

1. Product Description:
Type: Garden Fencing
Place of Origin: Hebei, China
Brand Name: Zhuokai wire mesh
Frame Material: Metal
Metal Type: Steel
Surface Treatment Type: Heat Treated
Finishing: PVC Coated,Powder Coated. Electric/Hot dipped galvanized.
Item: weld wire fence
Material: high quality low carbon steel wire/tube
Wire diameter:3-6mm
Mesh Aperture:50*100mm,50*150mm,50*200mm,100*100mm,100*200mm,etc
Height: 1.03m,1.23m,1.53m,1.83m,2.03m,2.23m,etc
Width:From 1000mm to 3000mm
Color:RAL6005,RAL9005,RAL9010,other color can make as your interesting.
Post: Square post:50*50,60*60,80*80,40*80mm,100*100mm;Round post:48,60,75mm,Peach post:70*100mm,etc
Fence post thickness:1.0-5.0mm

2. Product process:
1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated

3. Features:
This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.

4. Fence Specifications:

Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.
