| 材料: | 炭素鋼ワイヤー、電流を通されたワイヤー | メッシュ開口部: | 1" x1」、1-1/2 " x1-1/2」、2" x2」、2" x1 "等。 |
|---|---|---|---|
| 線径: | 0.4mm - 6.0mm | パネルサイズ: | 1.2x2.4M、1.2x3.0Mの1.8x3.6Mのect。 |
| 表面処理: | PVCコーティング | ポストの高さ: | 1.1M-3.0M |
| 電子メール: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| ハイライト: | 3D curved welded wire fence,outdoor 3D fence panels,curved metal fence panels |
||

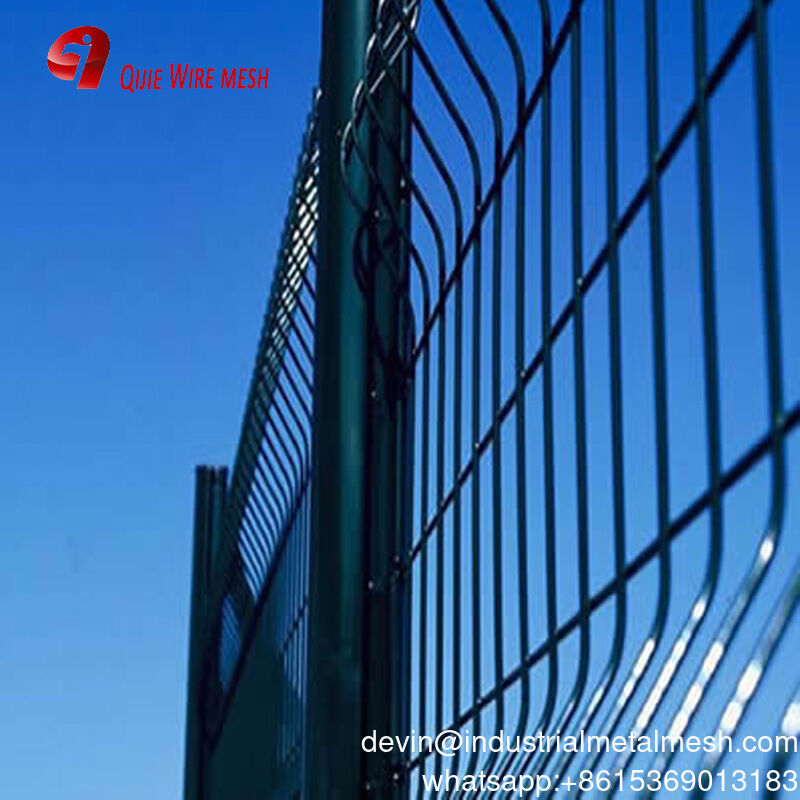

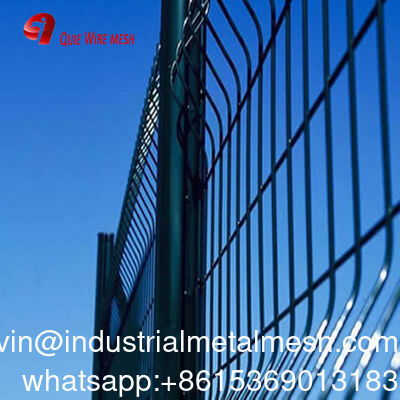

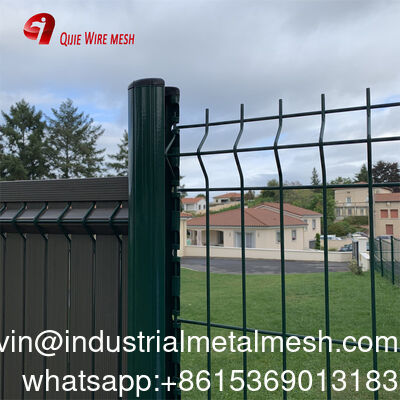

3D Curved Welded Wire Mesh Fence Outdoor 3D Fence Panels
It is an economical version of the panel system, constructed from a welded mesh panel with longitudinal profiles that forms arigid fence. The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials, then connected with post by suitable clips. Due to its simple structure, easy installation, nice appearance, more and more customers regard welded mesh fence as the preferred common protective fence.
3d curved welded wire mesh fence is a type of welded wire mesh which has V-shaped strengthen bending curves. It is made of high quality low carbon steel wire, galvanized steel wire,metal column connected. The surface treatment of Triangle bend fence includes: hot-dipped galvanized, PVC coated, powder coated, polyester coated.
| Mesh Size(mm) | Height(mm) | Width(mm) | Wire Dia(mm) | Post Height(mm) | Surface Treatment |
| 76.2*12.7 75*12.5 75*13 |
2100 | 2515/2750/3000 | 2.0-5.0 | 2700 | Galvanized Powder Coated PVC coated |
| 2200 | 2515/2750/3000 | 2800 | |||
| 2400 | 2515/2750/3000 | 3000 | |||
| 2700 | 2200/2300 | 3700 | |||
| 3000 | 2200/2300 | 4000 | |||
| 3600 | 2200/2300 | 4800 | |||
| 4000 | 2200/2300 | 5200 |
A set of 3D curved welded wire mesh fence include:
1. welded wire mesh panel
2. fence post and post cap
3. clamps
Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.
| 3D curved PVC coated galvanized welded iron wire mesh fence panel | |
| material | steel iron wire,galvanized wire |
| surface treatment | PVC coated ,powder coated |
| color | blue,green,black,white,yellow,grey,etc. |
| wire diameter | 4.5mm,5mm,6mm |
| hole size | 50x200mm,75x200mm |
| fence height | 1.5m,1.6m,1.8m,2m,2.1m |
| fence length | 2m,2.5m |
| post | peach type post,square type post |
