商品の詳細:
お支払配送条件:
|
| 技術: | 織物 | 材料: | ステンレス鋼線、316、304 |
|---|---|---|---|
| 織りスタイル: | /あや織り織り方嘆きなさい | 製品名: | 編まれる正方形4X4は100ミクロンのステンレス鋼の金網を粉にする |
| 線径: | 要件 | 幅: | 通常1M |
| 電子メール: | devin@industrialmetalmesh.com | ワッツアップ: | +8615369013183 |
| ハイライト: | plain weave stainless steel mesh,woven wire mesh screen,stainless steel wire screen |
||

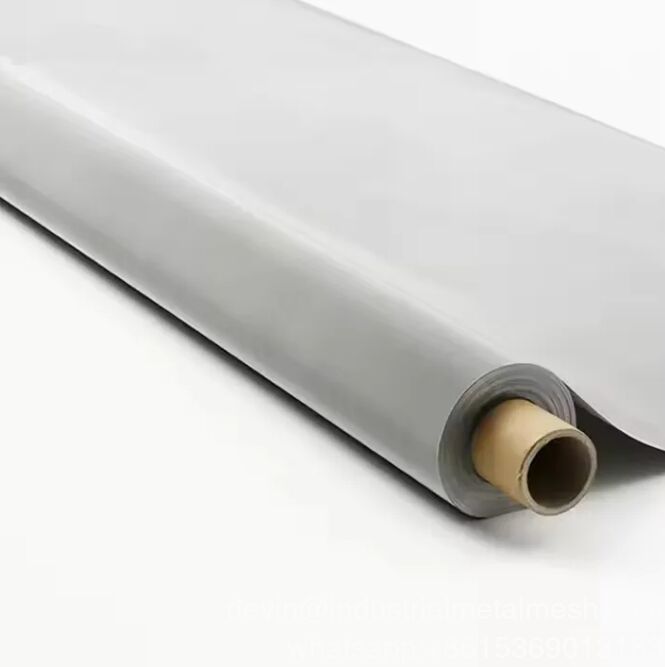

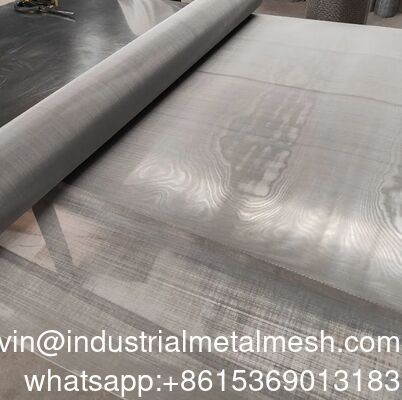

Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale
Stainless steel mesh is wire mesh, which is produced using weaving technology specially adapted to the material. The wires used can have a diameter of 12 µm to 7 mm, depending on the stainless steel alloy.
In industry, stainless steel mesh is mainly used in filtration and separation technology.
The stainless steel alloys used are crucial in determining the fields of use in terms of corrosion, temperatures and strengths. The currently available materials made of stainless steel and its alloys can be used in extremely corrosive environments as well as in applications exposed to very high temperatures.Woven type available
1. [ Plain Weave ]: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves.
In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern.
Each weft thread crosses the warp threads by going over one, then under the next, and so on.
The next weft thread goes under the warp threads that its neighbor went over, and vice verse.
2. [ Twill Weave ]: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left,
forming a distinct diagonal line. This diagonal line is also known as a wale.
A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. [ Plain Dutch Weave ]: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. [ Twill Dutch Weave ]: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. [ Reversed Dutch Weave ]: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Stainless Steel Wire Mesh
|
Table: Specification of Plain Weave Mesh
|
||||||
|
Model
|
Mesh Count
|
Wire Diameter
|
Mesh Opening
|
Open Area
|
||
|
-
|
(Warp × Weft)
|
Inch
|
mm
|
Inch
|
mm
|
%
|
|
HJ-0185
|
1x1
|
0.0799
|
2.030
|
0.9200
|
23.37
|
85
|
|
HJ-0276
|
2x2
|
0.0629
|
1.600
|
0.4370
|
11.1
|
76
|
|
HJ-0370
|
3x3
|
0.0539
|
1.370
|
0.2791
|
7.09
|
70
|
|
HJ-0456
|
4x4
|
0.0629
|
1.600
|
0.1870
|
4.75
|
56
|
|
HJ-0563
|
5x5
|
0.0409
|
1.040
|
0.1590
|
4.04
|
63
|
|
HJ-0662
|
6x6
|
0.0350
|
0.890
|
0.1318
|
3.35
|
62
|
|
HJ-0860
|
8x8
|
0.0279
|
0.710
|
0.0968
|
2.46
|
60
|
|
HJ-1056
|
10x10
|
0.0251
|
0.640
|
0.0751
|
1.91
|
56
|
|
HJ-1258
|
12x12
|
0.0200
|
0.508
|
0.0629
|
1.60
|
58
|
|
HJ-1446
|
14x14
|
0.0229
|
0.584
|
0.0480
|
1.22
|
46
|
|
HJ-1651
|
16x16
|
0.0179
|
0.457
|
0.0444
|
1.13
|
51
|
|
HJ-1848
|
18x18
|
0.0170
|
0.432
|
0.0385
|
0.98
|
48
|
|
HJ-2046
|
20x20
|
0.0159
|
0.406
|
0.0338
|
0.86
|
46
|
|
HJ-2444
|
24x24
|
0.0140
|
0.356
|
0.0275
|
0.70
|
44
|
|
HJ-3053
|
30x30
|
0.0090
|
0.229
|
0.0244
|
0.62
|
53
|
|
HJ-4036
|
40x40
|
0.0100
|
0.254
|
0.0149
|
0.38
|
36
|
|
HJ-5037
|
50x50
|
0.0079
|
0.203
|
0.0122
|
0.31
|
37
|
|
HJ-6034
|
60x60
|
0.0070
|
0.178
|
0.0098
|
0.25
|
34
|
|
HJ-8032
|
80x80
|
0.0055
|
0.140
|
0.0070
|
0.18
|
32
|
|
HJ-10037
|
100x100
|
0.0039
|
0.100
|
0.0060
|
0.154
|
37
|
|
HJ-12033
|
120x120
|
0.0035
|
0.090
|
0.0047
|
0.121
|
33
|
|
HJ-15042
|
150x150
|
0.0024
|
0.060
|
0.0042
|
0.109
|
42
|
|
HJ-16546
|
165x165
|
0.0019
|
0.050
|
0.0040
|
0.104
|
46
|
|
HJ-18042
|
180x180
|
0.0019
|
0.050
|
0.0036
|
0.0911
|
42
|
|
HJ-20034
|
200x200
|
0.0021
|
0.053
|
0.0029
|
0.0740
|
34
|
|
HJ-25037
|
250x250
|
0.0015
|
0.040
|
0.0024
|
0.0616
|
37
|
|
HJ-30033
|
300x300
|
0.0014
|
0.036
|
0.0019
|
0.0487
|
33
|
|
HJ-32531
|
325x325
|
0.0013
|
0.035
|
0.0017
|
0.0432
|
31
|
|
HJ-35034
|
350x350
|
0.0011
|
0.030
|
0.00167
|
0.0426
|
34
|
|
HJ-40028
|
400x400
|
0.0011
|
0.030
|
0.00131
|
0.0335
|
28
|
|
HJ-50026
|
500x500
|
0.00098
|
0.025
|
0.00101
|
0.0258
|
26
|
|
HJ-63525
|
635x635
|
0.00078
|
0.020
|
0.00078
|
0.0200
|
25
|
|
*We have more types of mesh than what is shown on the chart. Please feel free to contact us if you are looking for a certain opening size.
|
||||||
| C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|
| 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| AISI | UNS | DIN | JIS | GB/T |
|---|---|---|---|---|
| 316L | S31603 | 1.4404 | SUS 316L | 022Cr17Ni12Mo2 |
| Material | SUS 316L stainless steel wire |
| Color | Silver |
| Weave type | Plain dutch weave, Twill dutch weave and crimped |
| Mesh count | 2 mesh – 500x3500mesh |
| Aperture | 0.001mm – 25mm |
| Roll size | 0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc |
| MOQ | 1 square meter |
| Free Sample | A4 size of stock size |
| Package | Inside a paper tube, wrapped with moisture-proof paper, and then put into a box. |
When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.
For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.
More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll
The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.
325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
