| 材料: | アルミニウムの、電流を通された鋼線 | 製品名: | グリップの支柱の格子 |
|---|---|---|---|
| タイプ: | エッチングするか、または押す穴があいた網 | 技術: | 穴あき |
| 織りスタイル: | 、打たれる打ち抜かれる、打つ | 穴の形状: | 円形、ダイヤモンド、等の八角形プラム花 |
| 表面処理: | 吹き付け塗装/吹き付け塗装/浸る電流を通される過フッ化炭化水素のコーティング、熱い電流を通されるおよびfluorocaを | 色: | すべての色の破片は、白い、銀製青い、金持っている |
| 製品名: | 六角形の穴があいた金属板、拡張できるsdiamondの網 | 厚さ: | 0.5-8mm、0.3MM- 8MM |
| 特徴: | 耐食性、格好良い、良質、耐久性、酸耐性、抗抵抗 | 幅: | 1mか1.22m、1.22 mまたはそれ以下に |
| 使用法: | 、オイル/エア フィルター装飾的な、等食糧 | 長さ: | 2mまたは2.44m |
| サイズ: | カスタマイズされたサイズ、標準 | 形: | 正方形は円形か正方形の形、丸型、楕円形、六角形に、切ることができる |
| ピッチ: | 要求として1.0mm-100MM、または。 | 電子メール: | devin@industrialmetalmesh.com |
| ワッツアップ: | +8615369013183 | ||
| ハイライト: | aluminum anti-skid walkway grating,solar project roof grip strut,non-slip floor grating for roofs |
||

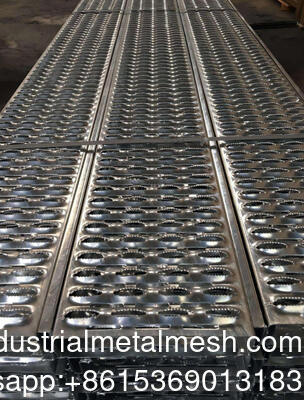

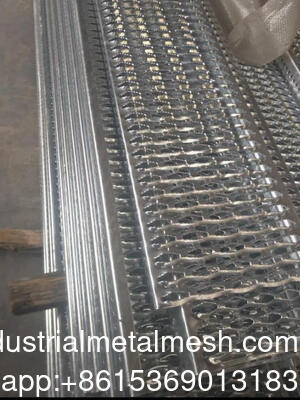

Anti Skid Plate Aluminum Walkway Floor and Roof Grip Strut Grating for Solar Energy Project
Antiskid Perforated Metal Plate Walkway Safety Grating Description| Material |
hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc. |
| Hole patterns | crocodile mouth, round raised hole, tears shape etc. |
| Thickness | generally 2mm, 2.5mm, 3.0mm |
| Height | 20mm, 40mm, 45mm, 50mm, customized |
| Length | 1m, 2m, 2.5m, 3.0m, 3.66m |
| Production technique | punching, cutting, bending, welding |
| Item No. | Item Description | Standard Width | Standard Channel Depth | Standard Length |
| 1 | 2-Diamond Plank | 4.75'' (120.65mm) |
1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm) |
10' and 12' (3048mm and 3657.6mm) |
| 2 | 3-Diamond Plank |
7'' (120.65mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 3 | 4-Diamond Plank |
9.5'' (241.3mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 4 | 5-Diamond Plank |
11.75'' (298.45mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 5 | 8-Diamond Plank |
18.75'' (476.25mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 6 | 10-Diamond Plank |
24'' (609.6mm) |
2'' and 3'' (50.8mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 7 | 10-Diamond Walkway |
24'' (609.6mm) |
4.5'' (114.3mm) |
10' and 12' (3048mm and 3657.6mm) |
CAUTION:
Custom lengths, widths and channel depths are available upon request!
Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.
|
|
