商品の詳細:
お支払配送条件:
|
| 材料: | 炭素鋼線 | メッシュ開口部: | 12 × 12, 20 × 20, 25 × 25, 12 × 25mm |
|---|---|---|---|
| 線径: | 0.4mm - 1.5mm | ロール幅: | 0.4m、0.5m、0.6m、0.8m、1.0m、1.25m、1.5m、2.0m |
| ロールの長さ: | 15M、30Mの50Mのect | 表面処理: | 浸る熱い電流を通されるまたは電気電流を通される |
| モデル番号: | xx-01001 | 応用：: | フェンスメッシュ |
| メール: | devin@industrialmetalmesh.com | ワッツアップ: | +8615369013183 |
| ハイライト: | galvanized welded wire mesh,3/8 welded wire mesh,electrical welded wire mesh roll |
||

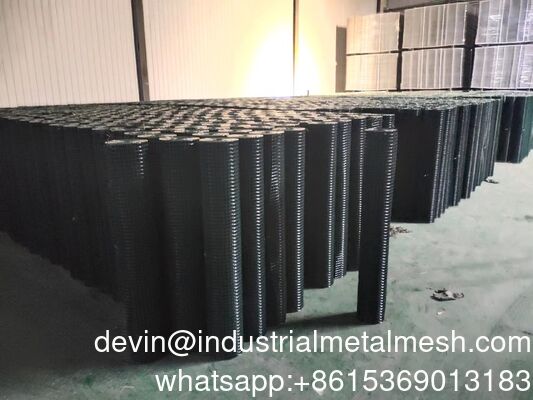

Electrical Galvanized Welded Wire Mesh 3/8X24bwg0.9X30m
Product Description:
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 21,22,23,24,25,26,27 |
| 2.5/8" x 2.5/8" | 7.94mmx7.94mm | 20,21,22,23,24,25,26 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22,23,24,25 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23,24,25,26,27 |
| 5/8" x 5/8" | 15.875mm x 15.875mm | 16,17,18,19,20,21,22,23,24,25 |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
| 6/7" x 6/7" | 21.8x21.8mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
| 1" x 1/2" | 25.4mm x 12.7mm | 14,15,16,17,18,19,20,21,22,23,24 |
| 1" x 1" | 25.4mmX25.4mm | 14,15,16,17,18,19,20,21,22,23 |
| 1-1/4" x 1-1/4" | 31.75mmx31.75mm | 14,15,16,17,18,19,20,21,22,23 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 13,14,15,16,17,18,19,20,21 |
| 2" x 1" | 50.8mm x 25..4mm | 13,14,15,16,17,18,19,20,21 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16,17,18,19,20 |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.1m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi
Packing
To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.
Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
