| 材料: | 鋼鉄 | 表面処理: | 溶融亜鉛メッキ |
|---|---|---|---|
| 標準: | GB/T3091 - 2001 、BS1387 - 1985 、DIN EN10025 、EN10219 、JIS G3444:2004 、ASTM A53 | 鋼種: | GB/T3091 - 2001:Q195、Q235 BS1387 - 1985、DIN EN10025 EN10219 :S235JR JIS G3444:2004:STK400 ASTM A53:G |
| ハイライト: | 2 inch galvanized steel pipe,galvanized steel sheet pipe,low price gi pipe |
||
Gi Pipe 2 Inch Galvanized Tube Galvanized Steel Pipe Low Prices Galvanized Steel Sheet Pipe
Hot dip galvanized tube is to make molten metal and iron matrix reaction and produce alloy layer, so that the matrix and coating of the combination of the two. Hot dip galvanizing is the first steel pipe pickling, in order to remove iron oxide on the surface of the steel pipe, pickling, through ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank for cleaning, and then into the hot dip plating tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between hot dip galvanized steel tube and molten plating solution to form a tightly structured zinc-ferroalloy layer with corrosion resistance. The alloy layer is integrated with pure zinc layer and steel tube matrix, so its corrosion resistance is strong.
| Shape | Round pipe | Square pipe | Rectangular pipe |
| Outer diameter | 17-1820mm | 10*10-1000*1000mm | 5*10-600*800mm |
| Wall thickness | 0.5-50mm | 0.5-50mm | 0.5-50mm |
| Part of sizes commonly used |
10*10*0.5mm 50*50*16mm 50*50-100*100*(1.0mm~20mm) 100*100-300*300*(1.0mm~50mm) 300*300-600*600*(2.0mm~50mm) 100*100*12mm 135*135*(10mm~12mm) 170*170*(1.5mm~20mm) 180*180*(1.5mm~20mm) 220*220*(2.0mm~25mm) 280*280*(2.0mm~25mm) 320*320*(2.0mm~30mm) 380*380*(4.0mm~36mm) 430*430*(6mm~40mm) 500*500*(8mm~50mm) 520*520*(8mm~50mm) 550*500*(8mm~50mm) 450*450*(6mm~50mm) 600*600*(6mm~50mm) |
10*5*0.5mm 80*200*12mm 160*120*(2mm~20mm) 180*140*(2mm~25mm) 250*150*(2mm~20mm) 300*200*(4mm~25mm) 350*150*(2mm~25mm) 300*100*(2mm~20mm) 350*250*(4mm~30mm) 350*300*(4mm~30mm) 305*102*(3.0mm~25mm) 304*254*(3.0mm~25mm) 360*310*(3.0mm~25mm) 360*240*(3.0mm~25mm) 350*100*(3.0mm~14mm) 310*210*(3.0mm~25mm) 300*200*(4mm~30mm) 400*150*(4mm~30mm) 400*200*(6mm~30mm) 400*250*(4mm~50mm) 450*250*(4mm~50mm) 500*200*(6mm~50mm) 450*350*(6mm~50mm) 500*300*(6mm~50mm) 600*800*(6mm~50mm) |
|
| Length | 4m-14m or as customers' requirements | ||
| Standard | BS1387-85,GB/T3091-08,DIN2440,JIS-G3444,EN10255,ASTM A53, | ||
| Surface | Black, paint, galvanized | ||
| Zinc coating | Pre galvanized steel pipe: 60-150g/m2; Hot dipped galvanized steel pipe: 200-400g/m2 |
||
| End finish | Plain/ beveled ends or threaded with sockets/coupling and plastic caps. | ||
| Material | Q195 Q215 Q235 Q345 St37 St52 St37-2 10# 20# 16Mn | ||
| Usage | Scaffolding pipe, Structure pipe, Fence/Door pipe, Furniture, | ||
| Lowpressure fluid pipe for water oil or gas, Boiler pipe. | |||
| Place of origin | Shandong,China | ||
| Productivity | 6000Mts/Month | ||
| Inspection | With hydraulic testing, eddy current and infrared test, or any third party inspction | ||
| Packing | In bundles, packed in woven bag; in loose; or request. | ||
| Delivery time | Within 20 days after the prepayment | ||
| Payment Terms | 1) Payment term : T/T ;L/C;D/P 2) Trade Terms : FOB / CFR /CIF | ||
| 3) Minimum quantity of order : 25 MT | |||
| Others | 1:Special design available according to requirement | ||
| 2:Pipe can be necked dowm, punching hole on pipe wall. | |||
| 3:Pipe fittings, elbows are available. | |||
| 4.All production process are under the ISO9001:2000 strictly | |||
| Grade | Chemical Composition | Mechanical Properties | ||||||
| C | Mn | Si | S | P | Yield | Tensile | Eelongation | |
| Strength Mpa | Strenth Mpa | % | ||||||
| Q195 | 0.06-0.12 | 0.25-0.50 | ≤0.30 | ≤0.045 | ≤0.05 | ≥195 | 315-430 | ≥33 |
| Q215 | 0.09-0.15 | 0.25-0.55 | ≤0.30 | ≤0.05 | ≤0.045 | ≥217 | 335-450 | ≥27 |
| Q235 | 0.12-0.20 | 0.30-0.67 | ≤0.30 | ≤0.045 | ≤0.04 | ≥235 | 375-500 | ≥26 |
| Q345 | ≤0.20 | 1.00-1.60 | ≤0.55 | ≤0.04 | ≤0.04 | ≥345 | 470-630 | ≥22 |

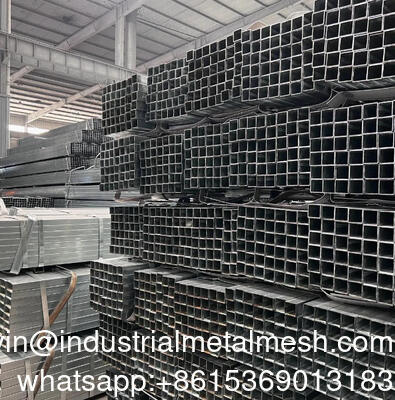

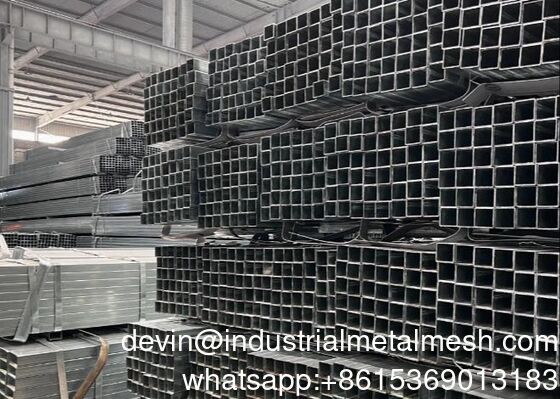

1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H
Square & rectangular steel tube : The size can be based on your requirement to custom.
| Name | Size | Wall Thickness | Length |
| mm | mm | m | |
| Square tube | 10x10-500x500 | 0.6-25.0 | 1-12m |
| Rectangular tube | 20x10-200x400 | 0.7-13.0 | 1-12m |
|

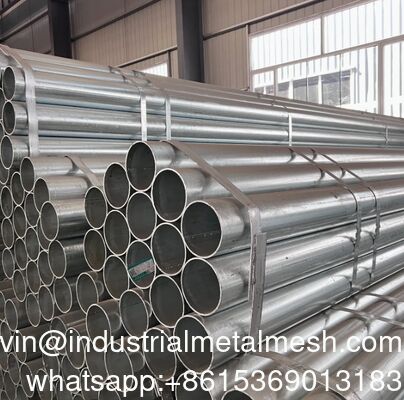

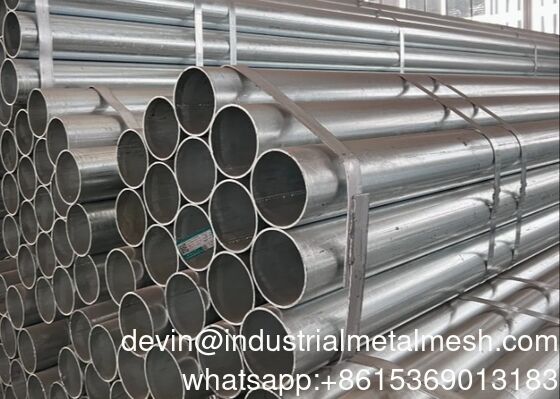

TECHNICAL PARAMETERS
|
|
|
Product Name
|
Galvanized Steel Round Pipe
|
|
Keywords
|
Steel Pipe
|
|
Standard
|
BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
|
|
Material
|
Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
|
|
Thickness
|
Pre Galvanized:0.6-1.5mm.
|
|
Hot Dipped Galvanized: 1.6- 25mm.
|
|
|
Length
|
5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
|
|
Out Diameter
|
Pre Galvanized:1/2''-4''(21.3-114.3mm).
|
|
Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
|
|
|
Zinc Coating
|
Pre Galvanized:5GSM-40GSM
|
|
Hot Dipped Galvanized 35GSM-200GSM
|
|
|
Technique
|
Electronic Resistance Welded (ERW)
|
|
Surface Finish
|
Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
|
|
Application
|
Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
|
|
Packing
|
1.Big OD:In Bulk
|
|
2.Small OD:Packed By Steel Strips
|
|
|
3.Woven Cloth With 7Slats
|
|
|
4.According To The Requirements Of Customers
|
|
|
SIZE INTRODUCTION
|
||
|
Out Diameter
|
Wall Thickness
|
Length
|
|
Inch
|
Mm
|
M
|
|
1/2"
|
0.5-2.75
|
1-12M (Customized)
|
|
3/4"
|
0.5-2.75
|
1-12M (Customized)
|
|
1"
|
0.5-3.75
|
1-12M (Customized)
|
|
1-1/4"
|
0.5-5.0
|
1-12M (Customized)
|
|
1-1/2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2-1/2"
|
0.8-5.0+
|
1-12M (Customized)
|
|
3"
|
0.8-5.0+
|
1-12M (Customized)
|
|
4"
|
0.8-4.0
|
1-12M (Customized)
|
|
5"
|
1.1-4.75
|
1-12M (Customized)
|
|
6"
|
1.1-6.0+
|
1-12M (Customized)
|
|
8"
|
1.2-6.5+
|
1-12M (Customized)
|
|
10"
|
2.75-5.0+
|
1-12M (Customized)
|
