65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

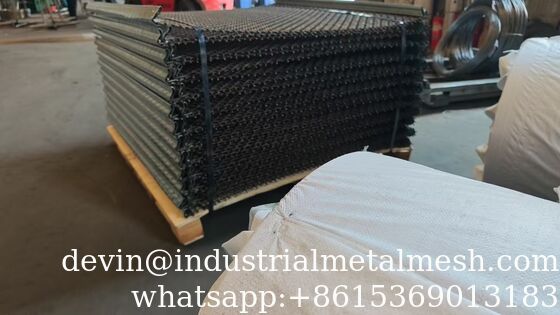

大画像 : 65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

商品の詳細:

起源の場所:	中国、ヘベイ
ブランド名:	Xmesh
証明:	SGS
モデル番号:	MVSM

お支払配送条件:

最小注文数量:	10個
パッケージの詳細:	パレット
受渡し時間:	15-25日
支払条件:	TT/LC
供給の能力:	ポンプ付きスクリューキャップ

詳細製品概要

材料:	ステンレス鋼線	タイプ:	ひだを付けられた金網
応用:	織りワイヤーメッシュ	織りスタイル:	平織り
技術:	織物	モデル番号:	振動スクリーンの網
加工サービス:	曲げ、溶接、デコイ、切断、打ち抜き	受渡し時間:	31〜45日
表面処理:	電流を通されるか、または塗られる。	メッシュサイズ:	1mm - 100mm。
穴タイプ:	正方形、長方形、および長いスロット。	開口部のサイズ:	2.0 - 80.0 mm
線径:	0.8～8mm	幅:	1.2m
長さ:	30メートル	フック:	鋼板が付いているホック
フック度:	60Degree	織りタイプ:	二重ひだ
メール:	devin@industrialmetalmesh.com	ワッツアップ:	+8615369013183
ハイライト:	65mn steel mining screen mesh , woven wire mesh for crusher , vibrating screen mining mesh

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

Product Description

Our 65Mn woven vibrating screen mesh is specially engineered for heavy-duty mining and aggregate screening applications. Made of high-quality 65Mn spring steel with heat treatment process, it achieves a hardness of 55-62 HRC, ensuring superior wear resistance and long service life. Compliant with GOST, GB and AISI standards, it is fully customizable in mesh size, wire diameter and sheet size to meet the specific needs of Russian and Central Asian customers.

Typical Applications:

Mining: Ore extraction, coal washing, and mineral processing.
Quarry & Aggregate: Stone crushing, sand screening, and gravel classification.
Construction: Demolition waste sorting and construction material screening.
Industrial: Chemical processing, grain handling, and waste management.

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.

Technical Specifications

(Custom configurations available upon request.)

Product Type	Key Features	Primary Applications
358 Security Mesh	9.5mmx3.15mm aperture pattern, anti-climb design	Prisons,facilities, high-security zones
358 Anti-Scale Mesh	Reinforced 6mm thick wires, tamper-resistant connections	Airport perimeters, critical infrastructure
Workshop Partition Panels	Modular design, easy installation, transparent or solid options	Factory floors, warehouse divisions, equipment zones
Elevator Protection Doors	Interlocking mechanism, safety sensors, reinforced frames	Construction sites, industrial elevator shafts
Anti-Glare Highway Barriers	Wave-shaped design, 85% visibility maintenance, UV resistant	Expressways, viaducts, traffic separation areas
Airport Perimeter Fencing	358 mesh standard, 3.0m height, anti-dig base design	Airfield boundaries, restricted access areas
Prison Security Fencing	76.2mmx12.7mm mesh, 6mm diameter wires, anti-climb topping	Correctional facilities, detention centers

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen 1

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below. 65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen 2

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen 3
