商品の詳細:
お支払配送条件:
|
| 材料: | ポリウレタン | 使用: | anti-clogging |
|---|---|---|---|
| ブランド: | qijie | モジュール: | declogging棒 |
| ハイライト: | vibrating declogging rod for mining mesh,mesh screen declogging rod,efficient mining mesh vibrator |
||
Declogging Rod Vibrates to Clear Mesh, Boosting Efficiency
Anti-Blinding Rods are elastic polyurethane rods that are fixed to the screen and have been developed to further improve the self-cleaning properties of anti-clogging screens. Anti-Blinding Rods use the machine’s vibration to move and bounce on the surface of the mesh that helps to shake off stubborn sticky material from blinding and pegging the screens. Anti-Blinding rods can be installed on any screen fixed or mobile.
BENEFITS:
These components fix together with pins and configured to cover part or all of your screenbox. They sit atop individual screens, or alternatively cover the entire area. In addition, different separators widths are available, fixing places vary, as a result this product highly customisable. The table below is designed as a guide only, contact us for more information, our sales staff will be happy to advise you further.
| Screen length | Components |
|---|---|
| Up to 1500 | 1 fixed rod and 2 mobile rods |
| Up to 2000 | 1 fixed rod and 3 mobile rods |
| Up to 2500 | 1 fixed rod and 4 mobile rods |
| Up to 3000 | 1 fixed rod and 5 mobile rods |
| Up to 3500 | 1 fixed rod and 6 mobile rods |
| Up to 4000 | 1 fixed rod and 7 mobile rods |
| Up to 4500 | 1 fixed rod and 8 mobile rods |
| Screen width | Components |
|---|---|
| Up to 1000 | 1 declogging rod |
| 1000 ÷ 1500 | 2 declogging rod |
| 1500 ÷ 2000 | 3 declogging rod |
NOTE – To avoid tangling of separate declogging rods, they are joined using separators according to the number of mobile rods. In addition, we don’t recommend use when screening with metallic meshes with wire diameters smaller than 2.5mm.

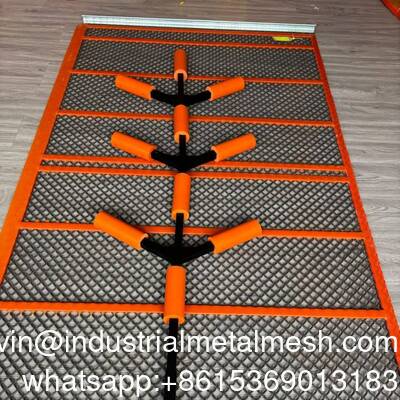

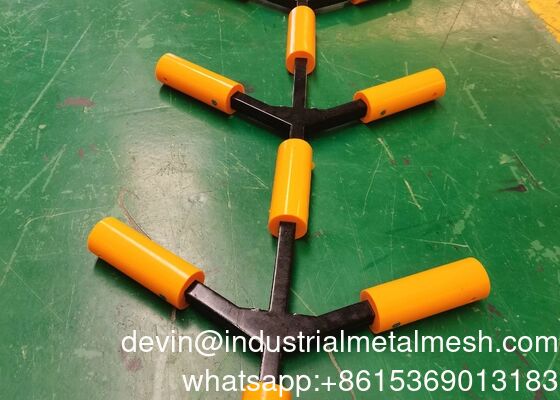

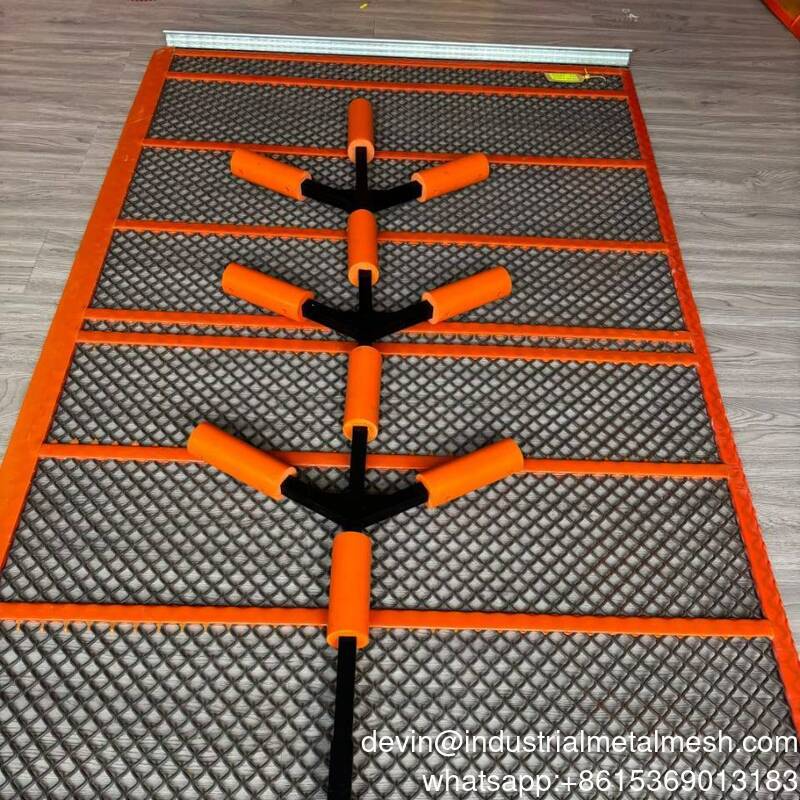

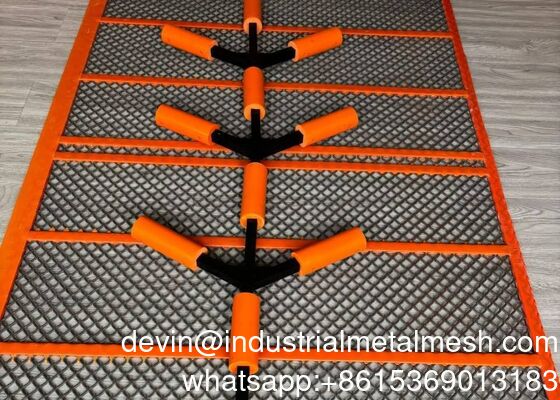

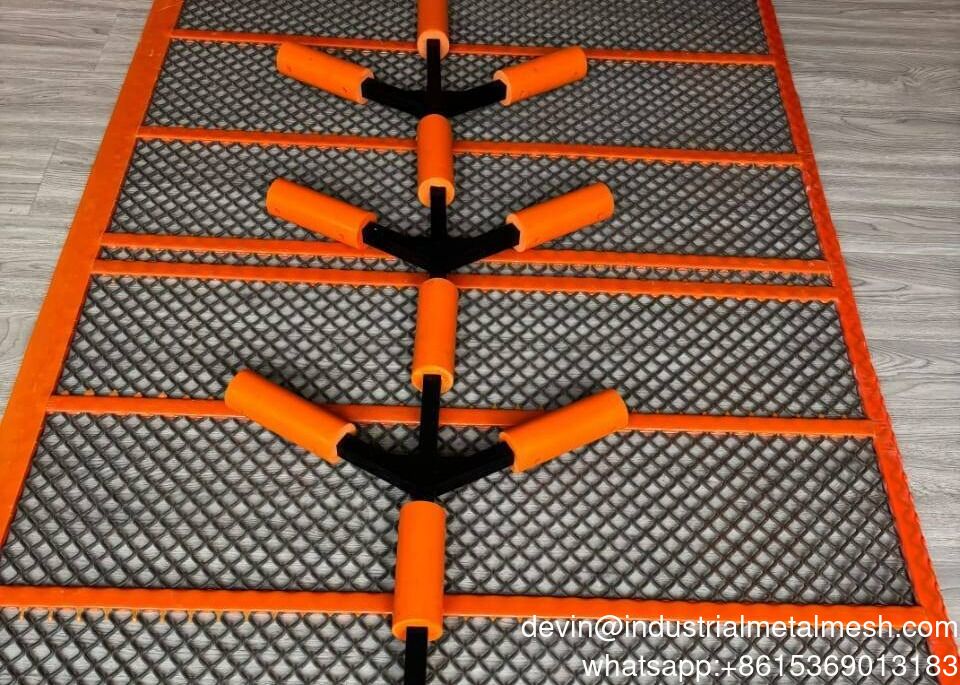

polyurethane declogging rods
polyurethane declogging rods
