商品の詳細:
お支払配送条件:
|
| 材料: | ステンレス鋼線、316、304、普通鋼亜鉛メッキ | 技術: | 溶接メッシュ |
|---|---|---|---|
| 応用: | スクリーン、保護メッシュ | 穴の形状: | 正方形穴、長方形穴 |
| 正常な刃のタイプ: | BTO-22、BTO-30、CBT-60、CBT-65 | メール: | devin@industrialmetalmesh.com |
| ワッツアップ: | +8615369013183 | ||
| ハイライト: | high security razor wire mesh,anti-climb welded razor wire,concertina razor wire with warranty |
||
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Razor Type
|
Notes
|
|
450mm
|
33
|
7M-8M
|
CBT-60, 65
|
Single Coil
|
|
500mm
|
56
|
12M-13M
|
CBT-60, 65
|
Single Coil
|
|
700mm
|
56
|
13M-14M
|
CBT-60, 65
|
Single Coil
|
|
960mm
|
56
|
14M-15M
|
CBT-60, 65
|
Single Coil
|
|
450mm
|
56
|
8M-9M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
500mm
|
56
|
9M-10M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
600mm
|
56
|
10M-11M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
600mm
|
56
|
8M-10M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
700mm
|
56
|
10M-12M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
800mm
|
56
|
11M-13M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
900mm
|
56
|
12M-14M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
960mm
|
56
|
13M-15M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
980mm
|
56
|
14M-16M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|

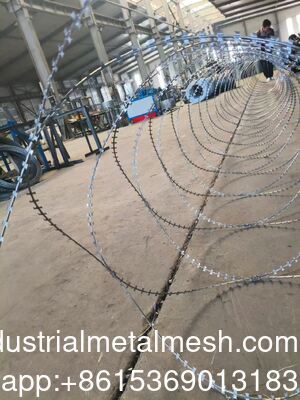

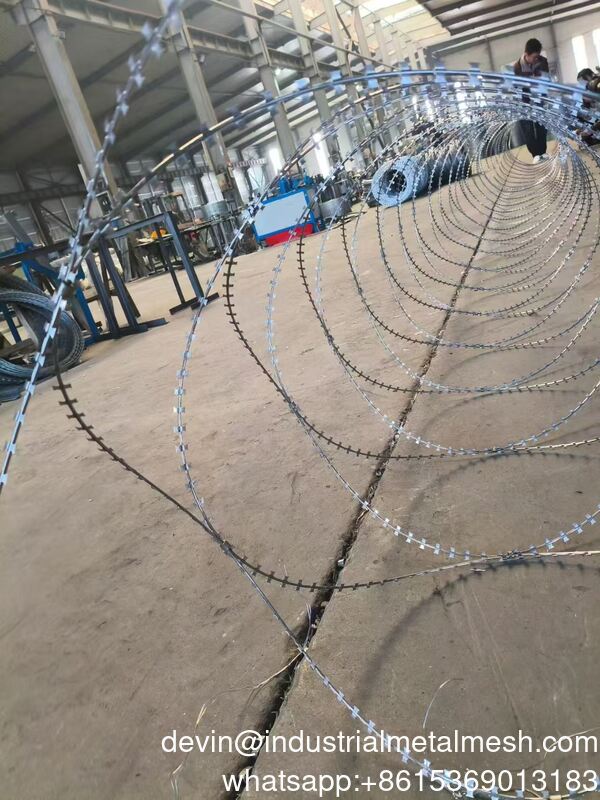

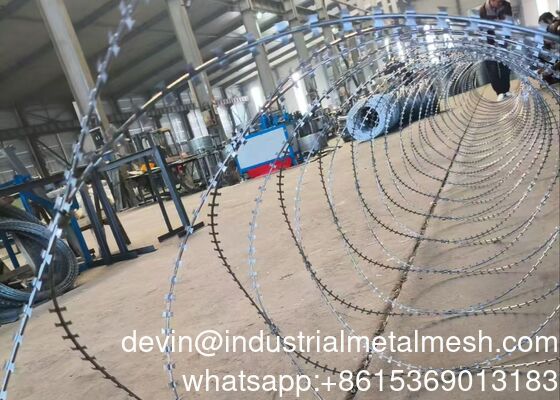

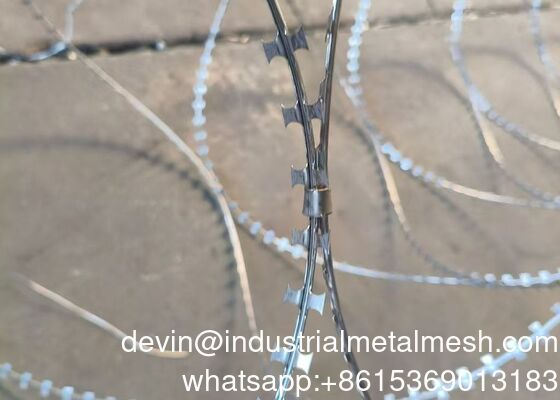

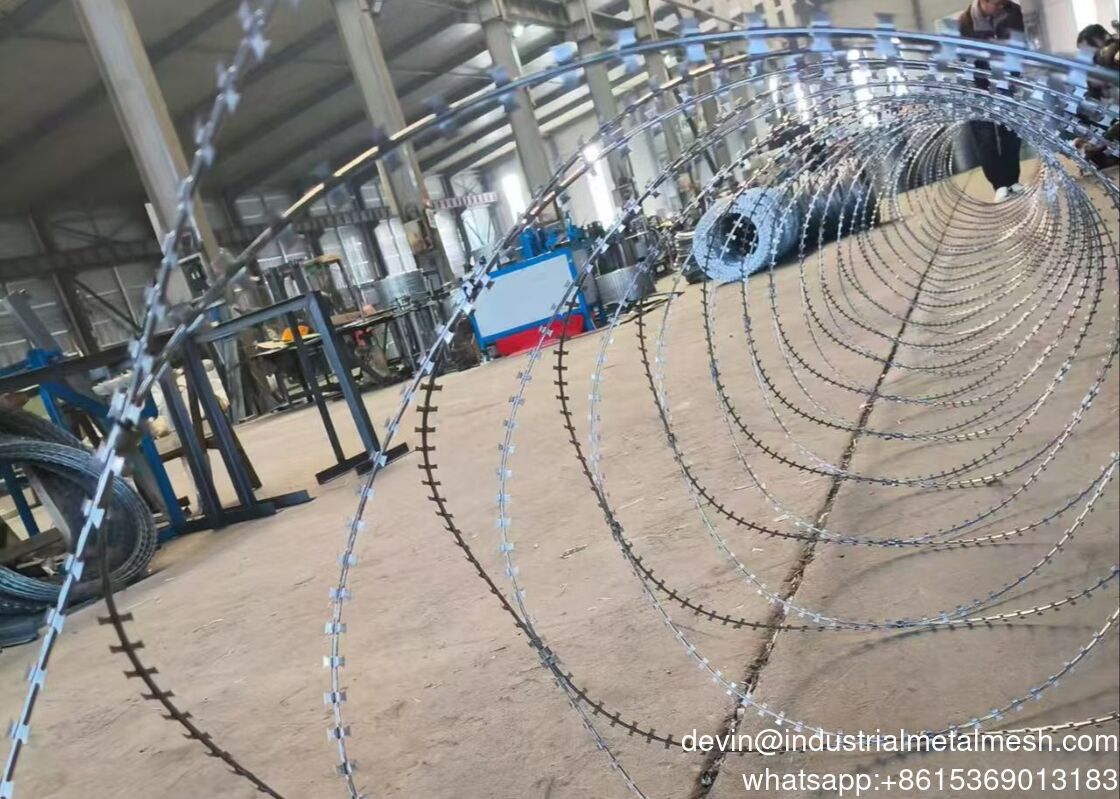

Application of concertina razor barbed wire
Razor Barbed Wire is widely used in airport , prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.
Packing of concertina razor barbed wire
compression rolls, water-proof paper inside, woven bag outside or in carton
Weave characteristics of concertina razor barbed wire
twist and weave, fastness ,beautiful; galvanizing after weaving, galvanizing before weaving. It is divided to electrical galvanized ,hot - dipped galvanized, plas-tic coating, stainless steel, etc.
Fetures of razor wire:
High reliability:Concertina Razor Wire also called Razor Wire.it the normal type of Razor wire you see around prisons and high security establishments. As an effective and economical security barrier, with its high security function, Concertina Razor Wire can prevent most of the intruders for it is hard and dangerous to broken.
Advantages of concertina razor barbed wire
Razor barbed wire mesh is a new kind of protective fencing with such advantages as beautiful appearance,economical cost and practicality.
| Hole shape | Mesh width | Suited blade specifications |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
