| 材料: | ステンレス鋼 | メッシュ: | 2-200 メッシュ |
|---|---|---|---|
| ハイライト: | 304 stainless steel wire mesh filter,316 stainless steel woven mesh,SUS wire mesh filter |
||

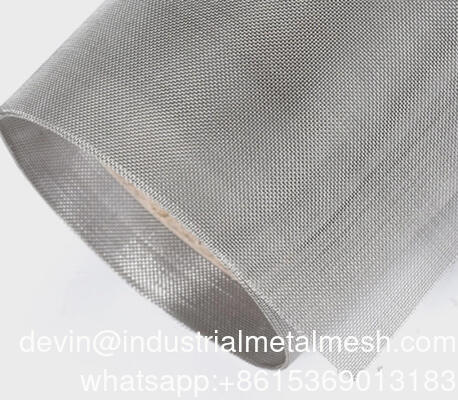

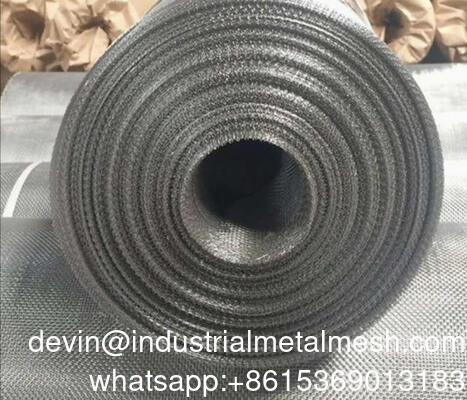

Stainless Steel Wire Mesh Wire Mesh Filter 304 316 SUS
Stainless steel wire mesh has been widely used in chemical, petrochemical and oilexploration, transportation, nuclear industry, energy, textile, aerospace, electronics,food pharmaceutical paper and other industrial sectors, in certain areas or may notbecome an indispensable substituted metal material. In addition, the sub-mesh sta-nless steel and decorative and easy to clean and antbacterial properties, in the con-sumer sector it has been widely used, such as construction and decoration, kitchenutensils, cutlery, metal and other civil.
Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.
Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life,accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.
Stainless Steel is one of the most common material used to create woven wire mesh,because it is extremely chemical resistant, works with hot or cold liquids, and is easily cleaned.
Common stainless steel materials used to create woven wire mesh include:304,304L,316,316L,430 etc.
Specification:
| Name: | Stainless steel wire mesh,Stainless steel mesh screen,Stainless steel filter wire mesh, Metal wire mesh, Stainless steel square wire mesh |
| Material: | Stainless steel wire mesh 201/304/304L/316/316L/431/321 |
| mesh count: | Plain weave can be woven up to 400 mesh. Twill weave can be woven from 30-635mesh. |
| Wire diameter: | 0.05mm-1.8mm |
| Width: | Common Width:0.914m,1.0m,1.22m,1.5m, Special requirement can be customized |
| Feature: | Acid-resisting,alkali-resisting and anti-corrosion High strength,good tension toughness and abrasion performance,durable in use. resistance to high temperature oxidation Highly polished, no need to do any surface treatment,with convenient and simple maintenance. |
| Application: | Mainly used in petroleum, electronics, chemical industry, medicine, textile, food, mahinery, building, nuclear,power, aerospace, |
| Mesh count | Wire Dia. (inch) |
mm |
Opening (inch) |
mm |
Opening area | Weight/m2 |
| 80*80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 | 16.9 |
| 90*90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
| 100*100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 100*100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 |
| 100*100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
| 110*110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
| 120*120 | 0.0037 | 0.094 | 0.0064 | 0.1168 | 30.7 | 11.6 |
| 150*150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1 |
| 160*160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 | 5.94 |
| 180*180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 6.7 |
| 200*200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 |
| 250*250 | 0.0061 | 0.0406 | 0.0024 | 0.061 | 36 | 4.4 |
| 270*270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | 4.7 |
| 300*300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 |
| 325*325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 | 4.4 |
| 400*400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 | 3.3 |
| 500*500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | 3.8 |
| 635*635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 | 2.63 |
