商品の詳細:
お支払配送条件:
|
| 穴の形状: | 正方形、長方形 | 1枚あたりの重量: | 線径とシートサイズにより異なります |
|---|---|---|---|
| 絞り: | 50*75mm またはあなたの要求として、1/4 | 規格準拠: | ASTM、ISO、BS規格 |
| 厚さ: | 1.3mm | 表面処理: | PVCコーティング |
| ロールサイズ: | 24 | 色: | シルバー、グリーン、ブラック（PVCコーティング用） |
| ハイライト: | 1/4 inch welded wire mesh,electro galvanized iron wire mesh,1/2 x 1/2 wire mesh |
||

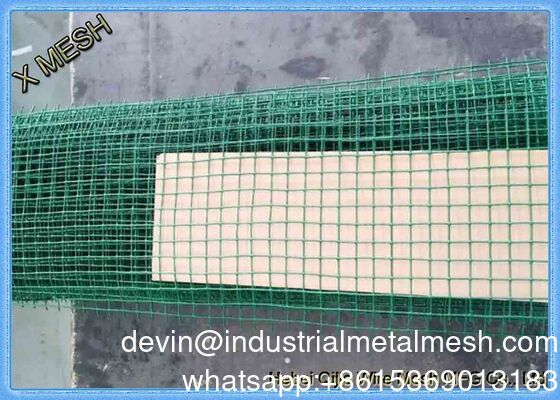

1/4"-8" Wire Mesh 1/2 X 1/ 2 1/4 Inch Electro Galvanized Welded Iron Wire Mesh
1. Welded wire mesh product description
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
pvc coated welded wire mesh advantages
1. The grid structure is concise, beautiful and practical;
2. It is easy to transport, and the installation is not restricted by terrain fluctuation;
3. Especially adaptable to mountains, slopes and multi-curved areas;
4. The price is medium to low, suitable for large areas.
| Tolerances on Mesh Dimensions | |
| Mesh Dimensions(mm) | Tolerance(mm) |
| < 50 | ±2.0 |
| ≥50 to < 200 | ±3.0 |
| Mesh Size and Wire Diameter | ||||
| Mesh Size | Wire Diameter Before & After PVC Coat | |||
| mm | inch | BWG No. | Before Coated (mm) | After Coated (mm) |
| 6.4 | 1/4 | 24-22 | 0.56-0.71 | 0.90-1.05 |
| 9.5 | 3/8 | 23-19 | 0.64-1.07 | 1.00-1.52 |
| 12.7 | 1/2 | 22-16 | 0.71-1.65 | 1.10-2.20 |
| 15.9 | 5/8 | 21-16 | 0.81-1.65 | 1.22-2.30 |
| 19.1 | 3/4 | 21-16 | 0.81-1.65 | 1.24-2.40 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81-1.65 | 1.24-2.42 |
| 25.4 | 1 | 21-14 | 0.81-2.11 | 1.28-2.90 |
| 38.1 | 1 1/2 | 19-14 | 1.07-2.11 | 1.57-2.92 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47-2.11 | 2.00-2.95 |
| 50.8 | 2 | 16-12 | 1.65-2.77 | 2.20-3.61 |
| Welded Wire Mesh Roll Size | |
| Mesh Inch | Width × Length |
| 1/2 | 3 ft. × 50 ft. |
| 1/2 | 4 ft. × 50 ft |
| 1/2 | 5 ft. × 50 ft. |
| 1/2 | 6 ft. × 50 ft. |
| 3/4 | 3 ft. × 50 ft |
| 3/4 | 4 ft. × 50 ft. |
| 3/4 | 5 ft. × 50 ft |
| 3/4 | 6 ft. × 50 ft. |
| 1 | 3 ft. × 50 ft. |
| 1 | 4 ft. × 50 ft. |
| 1 | 5 ft. × 50 ft. |
| 1 | 6 ft. × 50 ft. |
| Welded wire Mesh Panels Common Specification | |||
| Mesh | Wire Diameter | ||
| Expressed in Inches | Millimeters | Diameter | Millimeters |
| 1" × 1" | 25 mm × 25 mm | 11 G - 14 G | 2 mm - 3 mm |
| 2" × 1" | 50 mm × 25 mm | 8 G - 14 G | 2 mm - 4 mm |
| 2" × 2" | 50 mm × 50 mm | 8 G - 14 G | 2 mm - 4 mm |
| 3" × 2" | 75 mm × 50 mm | 6 G - 14 G | 2 mm - 5 mm |
| 3" × 3" | 75 mm × 75 mm | 6 G - 14 G | 2 mm - 5 mm |
| 4" × 2" | 100 mm × 50 mm | 4 G - 14 G | 2 mm - 6 mm |
| 4" × 4" | 100 mm × 100 mm | 4 G - 14 G | 2 mm - 6 mm |
| 5" × 5" | 125 mm × 125 mm | 4 G - 14 G | 2 mm - 6 mm |
| 6" × 6" | 150 mm × 150 mm | 4 G - 14 G | 2 mm - 6 mm |
| Note: Special specifications can be customized. | |||
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.
