| 材料: | 亜鉛メッキ鋼線 | 応用: | 警備フェンス |
|---|---|---|---|
| タイプ: | 拡張メッシュ | 色: | 銀 |
| 使用法: | 工事 | 特徴: | 耐久容易に組み立てられる耐食性 |
| 表面処理: | 溶融亜鉛メッキ | サイズ: | あなたの要件として |
| メール: | devin@industrialmetalmesh.com | ワットサップ: | +8615369013183 |
| ハイライト: | welded razor barbed wire fence,prison razor wire netting,concertina razor wire mesh |
||

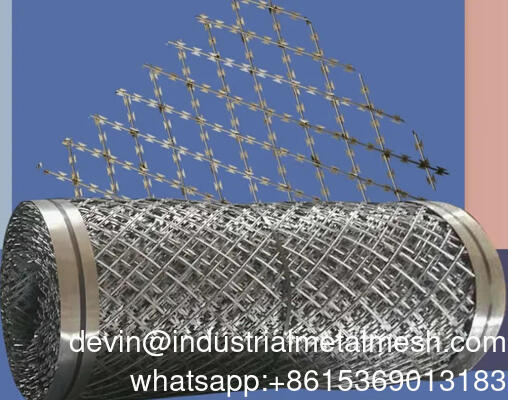

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece
Welded razor mesh (or Welded razor fence or Diamond razor mesh) is a straight razor barbed wire , welded mesh processed, which can be welded into a diamond, rectangular hole (aperture can be produced according to customers' requirements), nice, and the card cannot climb down, blocking strong deterrent force strong. It can be integrated with other fence and can also be used alone.
Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll or panels form for transport.
This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance. Welded razor wire mesh is installed in various parts of the world's airports, border bases, water substation, the border fence, oil depots, factories and so on.
| Type | Razor Mesh(Diamond Hole) | Razor Mesh(Square Hole) |
| Thickness of Sheet | 0.5mm±0.05mm | |
| Wire Diameter | 2.5mm±0.1mm | |
| Height | 1.0m-2.4m | |
| Length | 2.0m-10.0m | |
| Mesh Size | 75mmx150mm 100mmx200mm 150mmx300mm |
150mmx150mm 200mmx200mm 300mmx300mm |
Application:
Rhombus Welded Razor Mesh Fence is the ideal solution for any facility perimeter where an
aggressive visual deterrent and physical barrier is required.
Rhombus Welded Razor Mesh Fence Specifications:
Standard Heights: 6', 7 ½' and 10' (1.8m, 2.3 m and 3m)
Aperture Size: 3"*6" high density (7.62cm*15.24cm, Standard density also available)
Standard Panel Length: 20'6" (6.25m)
Blade length: 0.98" (2.5cm)
Blade thickness: 0.02" (0.5mm)
Blade width: 0.74" (19mm)
Blade spacing: 1.97" (5cm)
| Welded Razor mesh fence | ||||||||
| Name | Core Wire | Sheet | Razor Style | Mesh Aperture | Finished | Size | Package | |
| Welded Razor Mesh | 2.5±0.05mm | 0.5±0.03 mm | BTO-22 BTO-28 BTO-30 |
75X150mm 150X300mm as standard |
HDG or PC coated |
1.2x6.0m 1.8x6.0m 2.1x6.0m 2.4x6.0m |
In roll or pallet | |
| Name | Welded Razor Mesh Specification | |||
| Welded Razor Mesh | Core Wire | Razor Strip (sheet) | Square Razor Mesh Size | Diamond Razor Mesh Size |
| 2.50±0.05 mm High Tensile Galvanised Wire Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L |
0.50±0.05 mm Galvanised sheet strip razor Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L |
50 × 150 mm 75 × 150 mm 100x150 mm |
75 × 150 mm 150 × 300 mm |
|
| Other Mesh Sizes According to Customers' requirement | ||||
Galvanized anti-corrosion
Quick and easy for installation
Prevent sunlight, resistance against weathering drying
The appearance of the dreaded and excellent protective performance.
Sharp razor and it is almost impossible to climb.
Solid welded, high-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Various type can be chosen, square mesh, diamond mesh, etc
Various materials can be chosen, galvanized, stainless steel, with various colors.
Application:
Packing:
1. Packing will be different based on the client's request.

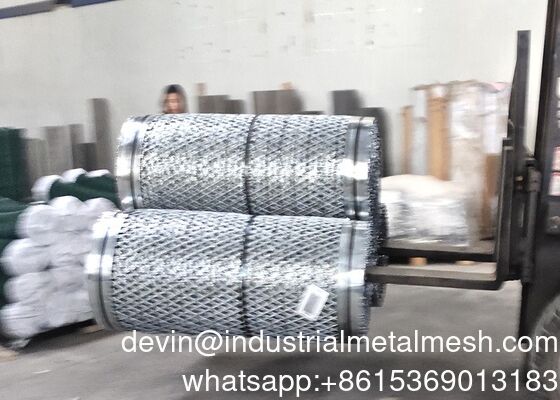

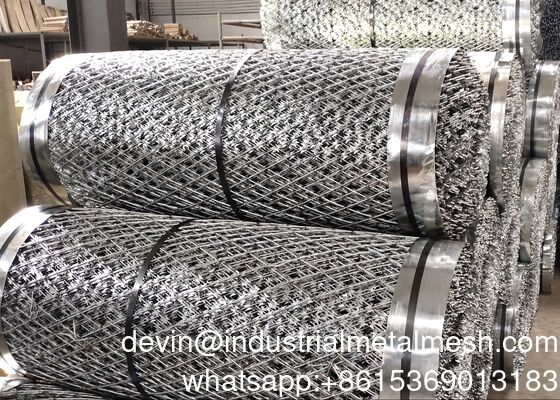

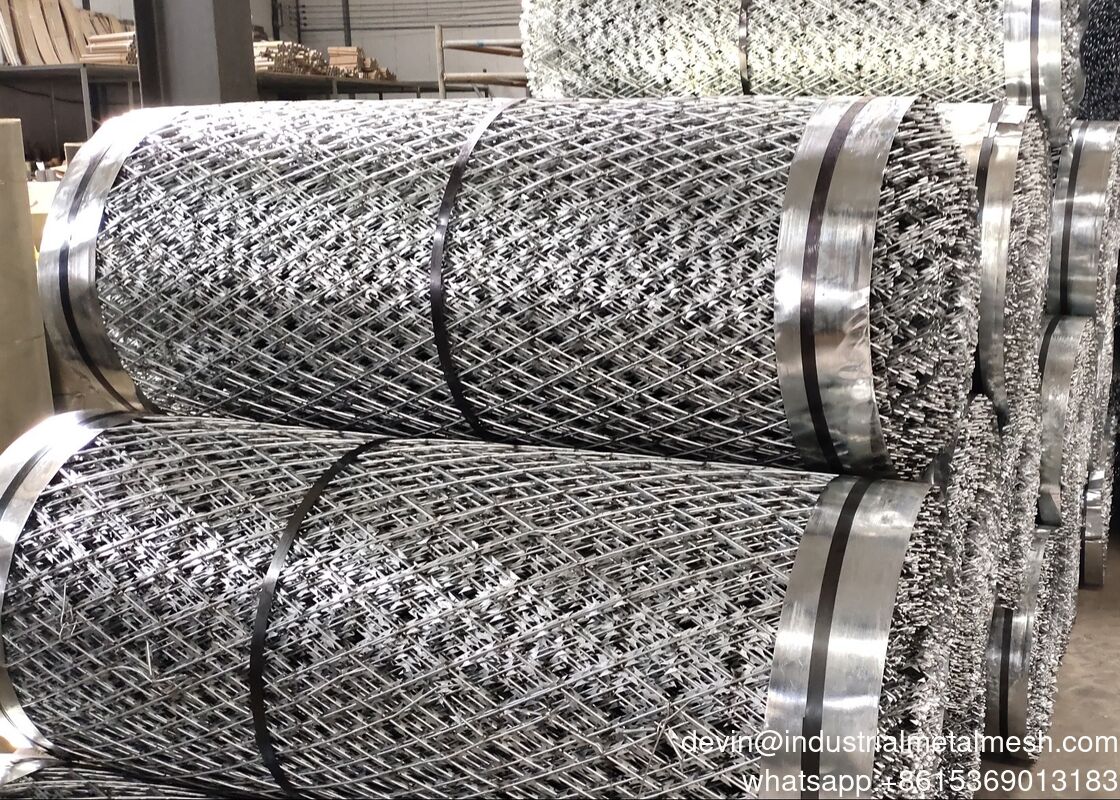

2. Normally, welded razor mesh is packed with waterproof paper inside and woven bag outside.
3. About 15 rolls per small bundle, and put on the wood pallet or in the carton box
