商品の詳細:
お支払配送条件:
|
| 給電ワイヤーシステム: | 二重線または単線 | マシンタイプ: | 自動 |
|---|---|---|---|
| メッシュ幅: | 1～6m | 経度ワイヤースペース: | 100~300mm |
| 爪の長さ: | 10~200mm | モーター: | サーブ モーター |
| 穴の形: | 六角 | ワイヤの直径の範囲: | 1.5mm-6mm |
| 電源: | 380V/50Hz | ||
| ハイライト: | gabion wire mesh machine,wire mesh fence machine,direct sale wire mesh machine |
||

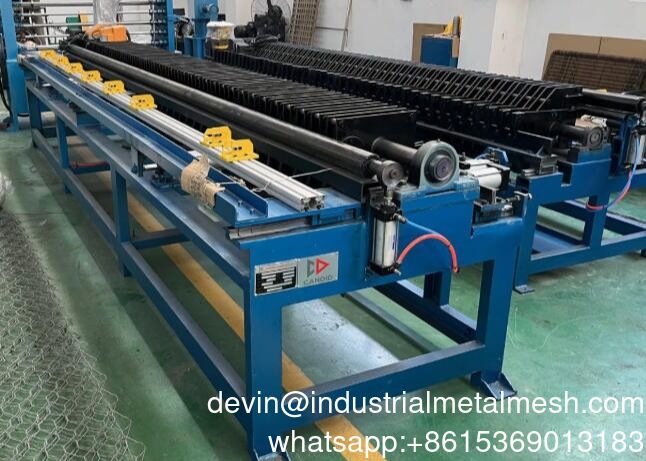

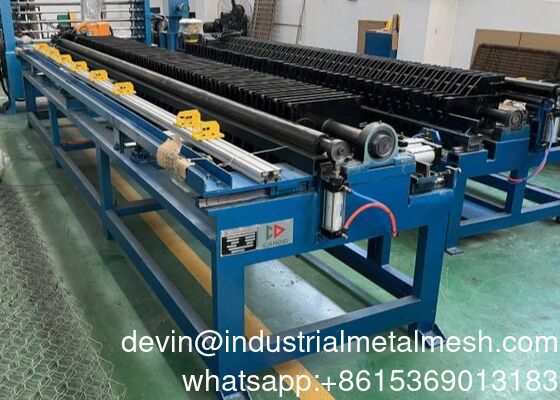

Direct Sale Gabion Wire Mesh Machine Wire Mesh Fence
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available. We can manufacture gabion machine according to customer request.
1.Mesh Size's range from 50*70mm To 176*200mm;
2.We can design the machine to produce the mesh size according to customer's request. But the mesh size should in the range of 50*70mm To 176*200mm;
3.Range of galvanized wire: 2.0mm~4.0mm (for different mesh size pls find the parameter in the specification);
4.Range of PVC coating galvanized wire: ≤5.0mm;
5.Our motor adopt Frequency Motor;
| Mesh Size (mm) |
Max. Netting (mm) |
Max.Dia of Weaving wire (mm) |
Max.Dia of Bordering wire (mm) |
Max Weaving- vein No. |
Power (kw) |
Exact Manu -facturing Speed |
Exterior Size (m) |
Weight (T) |
|
| Mesh Hole netting Count/Minute |
Meter /Hour |
L×W×H | |||||||
| 80×100 | 2500 | 3.2 | 4.0 | 3/5 | 11 | 42 | 170 | 5.2×1.4×2.4 | 13 |
| 3500 | 3.2 | 4.0 | 3/5 | 15 | 42 | 170 | 6.2×1.4×2.4 | 14 | |
| 4500 | 3.2 | 4.0 | 3/5 | 30 | 42 | 170 | 7.2×1.4×2.4 | 15 | |
| 100×120 | 2500 | 3.5 | 4.0 | 3/5 | 11 | 42 | 195 | 5.2×1.4×2.4 | 13 |
| 3500 | 3.5 | 4.0 | 3/5 | 15 | 42 | 195 | 6.2×1.4×2.4 | 14 | |
| 4500 | 3.5 | 4.0 | 3/5 | 30 | 42 | 195 | 7.2×1.4×2.4 | 15 | |
| 60×80 | 2700 | 3.5 | 4.0 | 3/5 | 11 | 42 | 150 | 5.2×1.4×2.4 | 13 |
| 3700 | 3.5 | 4.0 | 3/5 | 15 | 42 | 150 | 6.2×1.4×2.4 | 14 | |
| 4700 | 3.5 | 4.0 | 3/5 | 30 | 42 | 150 | 7.2×1.4×2.4 | 15 | |
