商品の詳細:
お支払配送条件:
|
| MachineWeight: | 2500 kg | 電子メール: | devin@industrialmetalmesh.com |
|---|---|---|---|
| 電源: | 380V、50Hz、3相 | ワイヤーの厚さ: | 1.7mm |
| 力: | 3KW | 生産能力: | 1 日あたり 500 ～ 1500 平方メートル |
| マシンディメンション: | 3500mm×1500mm×1800mm | メッシュタイプ: | 溶接ワイヤーメッシュ |
| 給電ワイヤーシステム: | 二重線または単線 | ||
| ハイライト: | full automatic chain link fence machine,high speed wire mesh machine,double wires OEM fence machine |
||

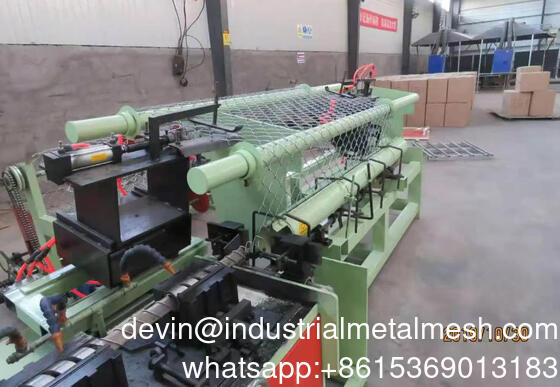

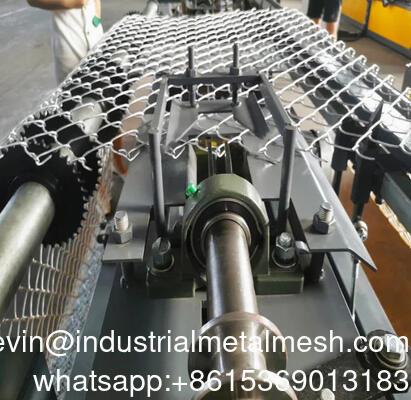

OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine
|
The Main Motor is two sets servo motor,the controller is Mitsubishi PLC,CNC touch screen
|
||
|
Function
|
Weave+Lock+Roll
|
|
|
Control Cabinet
|
Mitsubishi PLC 7 Inch touch screen
|
|
|
Lock Edge
|
Both Knuckle and twist
|
|
|
Wire Diameter
|
1.5mm to 4.5mm Wire work with reasonable opening
|
|
|
Mesh opening
|
25mm-100mm 40mm-150mm Customized Open work with reasonalble wire
|
|
|
Materials of Wires
|
GI wire, Hot-dipped Wire,PVC wire, Stainless Wire
|
|
|
Production Capacity eg.2M wide ot fence
|
30mmx30mm 40-60m2/h
|
40mmx40mm 40-60m2/h
|
|
40mmx40mm 80-100m2/h
|
40mmx40mm 80-100m2/h
|
|
|
50mmx50mm 120-160m2/h
|
50mmx50mm 120-160m2/h
|
|
|
60mmx60mm 150-180m2/h
|
60mmx60mm 150-180m2/h
|
|
|
75mmx75mm 180-200m2/h
|
75mmx75mm 180-200m2/h
|
|
|
100mmx100mm 200-260m2/h
|
100mmx100mm 200-260m2/h
|
|
|
TECHNICAL PARAMETERS
|
|||
|
Netting Width Specification
|
2M
|
3M
|
4M
|
|
No. Of Input Wires
|
1
|
||
|
Capacity(Based On Mesh Size 50mm*50mm)
|
60-70M2/H
|
||
|
Power Supply
|
380V 50Hz (Other Requirements Can Be Custom-Made)
|
||
|
Speed Of The Axle Of The Shaped Knife
|
200-700RPM
|
||
|
Suitable Wire To The Machine
|
Galvanized Wire, PVC Wire, Steel Wire
|
||
|
Diameter Of Wire
|
1.6-4.0Mm(Depend On The Mesh Size)
|
||
|
Power Consumption
|
7.17Kw, 5 Motors(Based on 4M, It relates to the Dia. of wire, and the power can be custom-made.)
|
||
|
Mesh Size
|
25*25mm-100*100mm (if the mesh size is 25*25mm, the steel wire should be all soft)
|
||
|
Weight Of Equipment
|
2.2T
|
2.5T
|
3.0T
|
|
Main Machine Outer Size
|
4.8M*1.1M*2.3M
|
5.5M*1.1M*2.3M
|
6.5M*1.1M*2.3M
|
|
Auxiliary Machine Outer Size
|
2.5M*1.5M*1.1M
|
4M*1.5M*1.1M
|
4.5M*1.5M*1.1M
|
|
The Color Of The Machine
|
Can Be Custom-Made
|
||
|
Max. Winding Capacity
|
30 Meters Per Roll
|
||
