商品の詳細:
お支払配送条件:
|
| 材料: | アルミニウムの、電流を通された鋼線 | 製品名: | グリップの支柱の格子 |
|---|---|---|---|
| タイプ: | エッチングするか、または押す穴があいた網 | 技術: | 穴あき |
| 織りスタイル: | 、打たれる打ち抜かれる、打つ | 穴の形: | 円形、ダイヤモンド、等の八角形プラム花 |
| 表面処理: | 吹き付け塗装/吹き付け塗装/浸る電流を通される過フッ化炭化水素のコーティング、熱い電流を通されるおよびfluorocaを | 色: | すべての色の破片は、白い、銀製青い、金持っている |
| 製品名: | 六角形の穴があいた金属板、拡張できるsdiamondの網 | 厚さ: | 0.5-8mm、0.3MM- 8MM |
| 特徴: | 耐食性、格好良い、良質、耐久性、酸耐性、抗抵抗 | 幅: | 1mか1.22m、1.22 mまたはそれ以下に |
| 使用法: | 、オイル/エア フィルター装飾的な、等食糧 | 長さ: | 2mまたは2.44m |
| サイズ: | カスタマイズされたサイズ、標準 | 形: | 正方形は円形か正方形の形、丸型、楕円形、六角形に、切ることができる |
| ピッチ: | 要求として1.0mm-100MM、または。 | 電子メール: | devin@industrialmetalmesh.com |
| ワッツアップ: | +8615369013183 | ||
| ハイライト: | heavy duty diamond grip strut grating,strut plank catwalk grating,industrial diamond holes grip grating |
||

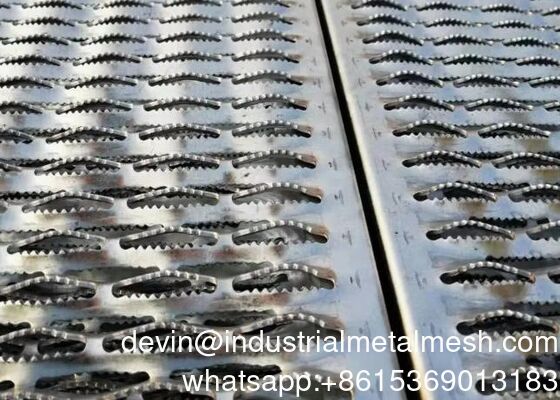

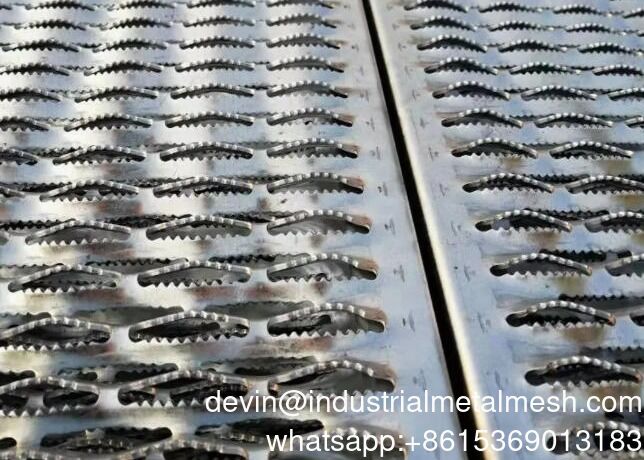

Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating
The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.

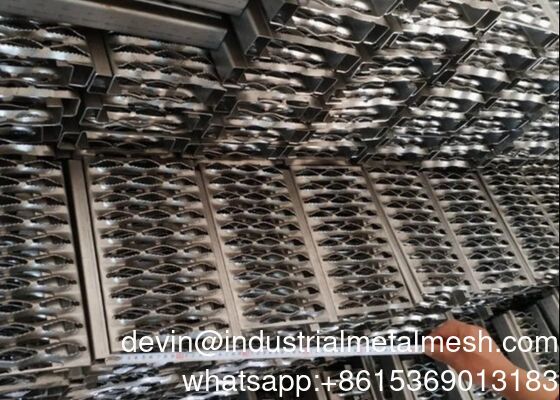

Grip struct perforated steel grating
Diamond Grip Strut Safety Plank Grating provides a maximum safety and slip resistant option against mud, ice, snow, grease, oil or detergents on plank, walkways, catwalks, stairs, etc. The plank grating is usually made of lightweight Low carbon steel Q235, pre-galvanized steel plate, Stainless steel 304 or 316, go througn cutting the right size easily, punching the serrated diamond hole, and bending into depth as your required.
The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.
| Item No. | Item Description | Standard Width | Standard Channel Depth | Standard Length |
| 1 | 2-Diamond Plank | 4.75'' (120.65mm) |
1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm) |
10' and 12' (3048mm and 3657.6mm) |
| 2 | 3-Diamond Plank |
7'' (120.65mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 3 | 4-Diamond Plank |
9.5'' (241.3mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 4 | 5-Diamond Plank |
11.75'' (298.45mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 5 | 8-Diamond Plank |
18.75'' (476.25mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 6 | 10-Diamond Plank |
24'' (609.6mm) |
2'' and 3'' (50.8mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 7 | 10-Diamond Walkway |
24'' (609.6mm) |
4.5'' (114.3mm) |
10' and 12' (3048mm and 3657.6mm) |
