商品の詳細:
お支払配送条件:
|
| 材料: | アルミニウムの、電流を通された鋼線 | 製品名: | グリップの支柱の格子 |
|---|---|---|---|
| タイプ: | エッチングするか、または押す穴があいた網 | 技術: | 穴あき |
| 織りスタイル: | 、打たれる打ち抜かれる、打つ | 穴の形: | 円形、ダイヤモンド、等の八角形プラム花 |
| 表面処理: | 吹き付け塗装/吹き付け塗装/浸る電流を通される過フッ化炭化水素のコーティング、熱い電流を通されるおよびfluorocaを | 色: | すべての色の破片は、白い、銀製青い、金持っている |
| 製品名: | 六角形の穴があいた金属板、拡張できるsdiamondの網 | 厚さ: | 0.5-8mm、0.3MM- 8MM |
| 特徴: | 耐食性、格好良い、良質、耐久性、酸耐性、抗抵抗 | 幅: | 1mか1.22m、1.22 mまたはそれ以下に |
| 使用法: | 、オイル/エア フィルター装飾的な、等食糧 | 長さ: | 2mまたは2.44m |
| サイズ: | カスタマイズされたサイズ、標準 | 形: | 正方形は円形か正方形の形、丸型、楕円形、六角形に、切ることができる |
| ピッチ: | 要求として1.0mm-100MM、または。 | 電子メール: | devin@industrialmetalmesh.com |
| ワッツアップ: | +8615369013183 | ||
| ハイライト: | non slip steel grating walkway,safety steel grip strut grating,steel grating with grip strut |
||

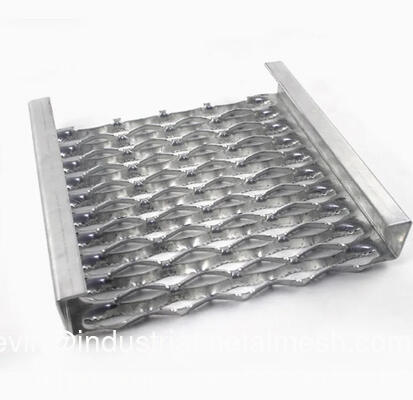

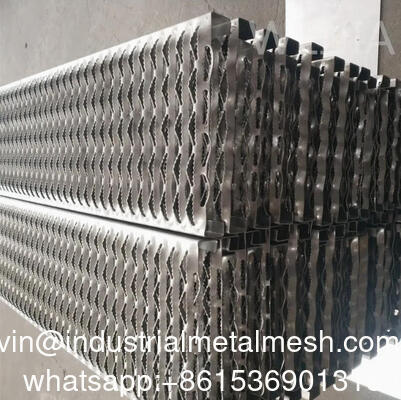

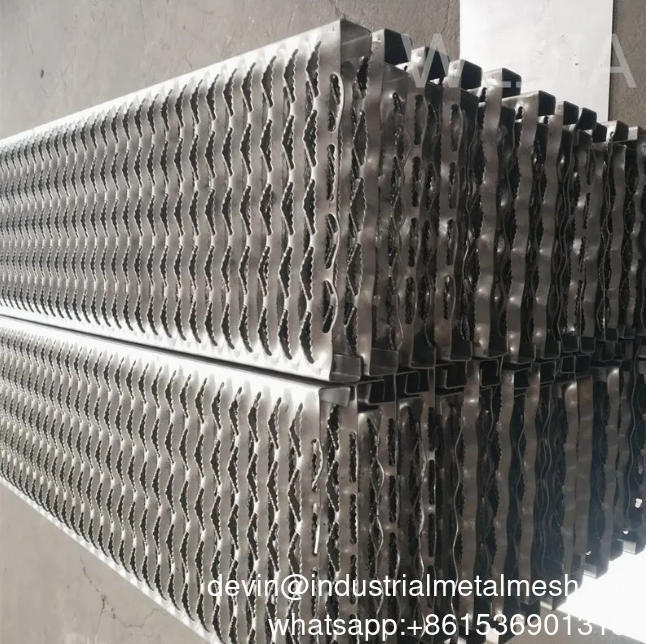

Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Perforated Anti-skid Grip Strut , Alligator Mouth Hole Checkered Plate made of high quality steel, aluminum and stainless
steel offers the high slip resistant surface. The surface of the plank has diamond-shaped holes with serrated tooth for
grabbing in every direction under practically all conditions. The holes can be different numbers and it provides the enough
air opening to drop the waste. Perforated Anti-skid Grip Strut , Alligator Mouth Hole Checkered Plate is easy and quick to
install, besides, high strength-to- weight performance offers a high load capacity. Perforated Anti-skid Grip Strut , Alligator
Mouth Hole Checkered Plate can lasts a long life and is ideal for oily environment and industry.
Application
1. The top wall of the building object can be used for the ceiling, filter plate and cavity plate.
2. Used for building
balconies, environmental tables and chairs.
3. Protective cover plate, punch net and round hole plate for mechanical
equipment
4. Used for grain, feed sieve plate, sieve sheet, microporous plate.
5. Used for the shelf mesh decoration of the shopping mall display table hole plate, porous plate, perforated plate.
|
Structure
|
Plank thickness
|
Width
|
Channel height
|
Clear span
|
|
2-diamond |
14G
|
4-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
3-diamond |
14G
|
7"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
4-diamond |
14G
|
9-1/2"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
5-diamond |
14G
|
11-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
8-diamond |
14G
|
18-3/4"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
||
|
10-diamond |
14G
|
24"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.
