商品の詳細:
お支払配送条件:
|
| 材料: | アルミニウムの、電流を通された鋼線 | 製品名: | グリップの支柱の格子 |
|---|---|---|---|
| タイプ: | エッチングするか、または押す穴があいた網 | 技術: | 穴あき |
| 織りスタイル: | 、打たれる打ち抜かれる、打つ | 穴の形: | 円形、ダイヤモンド、等の八角形プラム花 |
| 表面処理: | 吹き付け塗装/吹き付け塗装/浸る電流を通される過フッ化炭化水素のコーティング、熱い電流を通されるおよびfluorocaを | 色: | すべての色の破片は、白い、銀製青い、金持っている |
| 製品名: | 六角形の穴があいた金属板、拡張できるsdiamondの網 | 厚さ: | 0.5-8mm、0.3MM- 8MM |
| 特徴: | 耐食性、格好良い、良質、耐久性、酸耐性、抗抵抗 | 幅: | 1mか1.22m、1.22 mまたはそれ以下に |
| 使用法: | 、オイル/エア フィルター装飾的な、等食糧 | 長さ: | 2mまたは2.44m |
| サイズ: | カスタマイズされたサイズ、標準 | 形: | 正方形は円形か正方形の形、丸型、楕円形、六角形に、切ることができる |
| ピッチ: | 要求として1.0mm-100MM、または。 | 電子メール: | devin@industrialmetalmesh.com |
| ワッツアップ: | +8615369013183 | ||
| ハイライト: | crocodile mouth anti-skid walkway,aluminum tread plate grating,grip strut grating with holes |
||

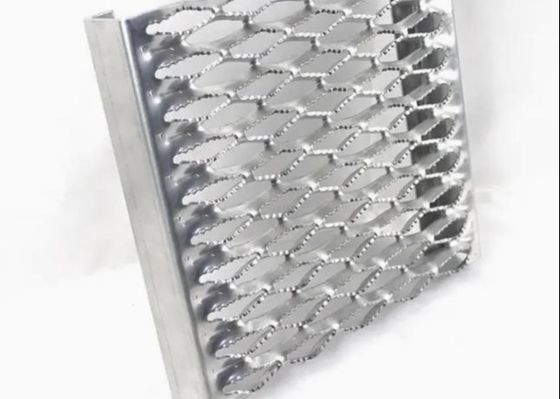

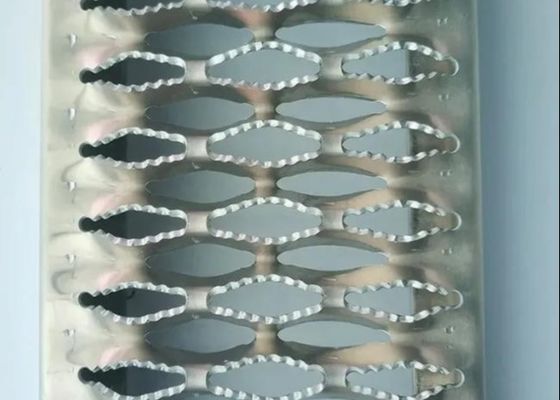

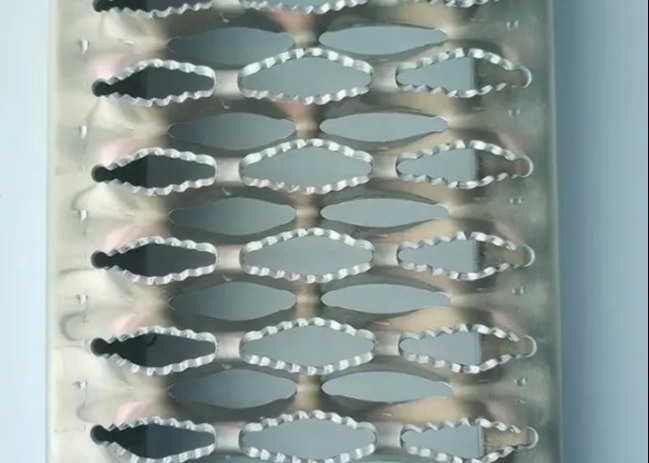

Anti-slip gratings are manufactured as one-piece consructed channels with walking surfaces surfaces consisting of serrated edges on top of diamond shaped openings. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. They can be cut or bending to any size and are ideal for wet or dry conditions where good slip resistance and traction are needed, adapt to different ground and anti-skid requirement.
We can produce full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications and so on. Material:Steel,Aluminum,Stainless Steel
Pattern:Round type,Crocodile mouth type
Grip Strut planks are available in a broad range of widths and depths for various applications and load requirements.
Standard widths include:
Standard channel depths include 1-1/2”, 2”, 2-1/2”, and 3”.
Stock lengths of 10’ and 12’ are readily available and custom lengths are available on special order.
Grip Strut planks are available in the following materials:
Additional Grip Strut Products
In addition to plank grating, the distinct benefits of the Grip Strut surface are also available in OSHA compliant walkway channels, stair treads, ladder rungs, floor resurfacing materials, and Heavy Duty Grip Strut. For further details, please see related products below.
|
Structure
|
Plank thickness
|
Width
|
Channel height
|
Clear span
|
|
2-diamond |
14G
|
4-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
3-diamond |
14G
|
7"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
4-diamond |
14G
|
9-1/2"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
5-diamond |
14G
|
11-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
8-diamond |
14G
|
18-3/4"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
||
|
10-diamond |
14G
|
24"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
