商品の詳細:
お支払配送条件:
|
| 原産地：: | 中国、ヘベイ | 材料：: | ステンレス鋼線 |
|---|---|---|---|
| タイプ：: | 編むロープの網バックル | 応用：: | 、動物園装飾的な、保護の網橋柵、建物 |
| 織り方様式:: | 平野/あや織り/ダッチ織り | テクニック:: | 織り |
| 色：: | 銀製、黒いですまたは注文 | 開始サイズ:: | 20x20mm、25x25mm、30x30mm、38x38mm、50x50mm等 |
| メール: | devin@industrialmetalmesh.com | WhatsAPPについて: | +8615369013183 |
| ハイライト: | 1.5mm Diameter Stainless Steel Wire Rope Mesh,DIN 3055 Stainless Steel Cable Mesh,90% Light Transmission Wire Rope Mesh |
||
| Product Type | STAINLESS STEEL WIRE ROPE MESH |
|---|---|
| Flexibility | FLEXIBLE |
| Wire Rope Construction | 7x7 |
| Material | STAINLESS STEEL |
| Material Type | AISI316 |
| Specification | DIN 3055 |
| Finish | ULTRASONIC BATH |
| Nominal Diameter (Metric) | 1.5mm |
| Approx. Net Weight | 1.22kg/m2 |
| Min. Breaking Load (Wire Rope) | 129kgf or 1.27kN |
| Light Transmission | 90% |

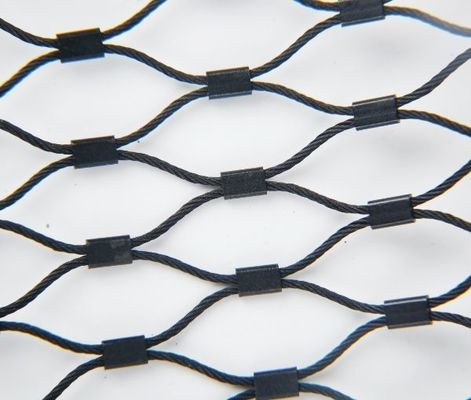

The classic diamond pattern offers superior strength and durability, making it ideal for enclosures requiring robust barriers. The intersecting wires create a visually appealing design that blends well with natural environments.
Featuring wires that intersect at right angles, this contemporary design provides a clean, minimalist appearance while maintaining structural integrity.
| ID | Wire Dia. (inch) | Wire dia.(mm) | Mesh (inch) | Mesh(mm) |
|---|---|---|---|---|
| HM32102 | 1/8 | 3.2 | 4 x 4 | 102 x 102 |
| HM24102 | 3/32 | 2.4 | 4 x 4 | 102 x 102 |
| HM20102 | 5/64 | 2.0 | 4 x 4 | 102 x 102 |
| HM16102 | 1/16 | 1.6 | 4 x 4 | 102 x 102 |
| HM12102 | 3/64 | 1.2 | 4 x 4 | 102 x 102 |
| HM3276 | 1/8 | 3.2 | 3 x 3 | 76 x 76 |
| HM2476 | 3/32 | 2.4 | 3 x 3 | 76 x 76 |
| HM2076 | 5/64 | 2.0 | 3 x 3 | 76 x 76 |
| HM1676 | 1/16 | 1.6 | 3 x 3 | 76 x 76 |
| HM1276 | 3/64 | 1.2 | 3 x 3 | 76 x 76 |

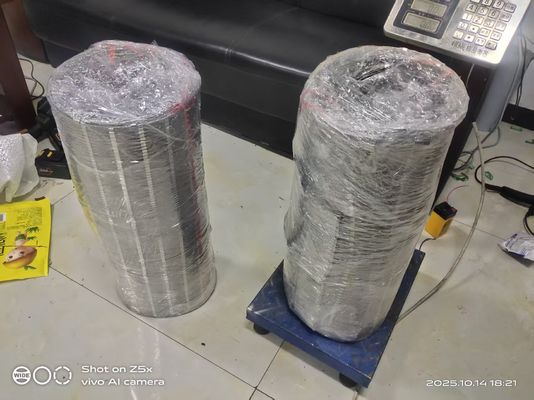

Standard packaging includes OPP bags with carton box protection. Custom logo printing available. Bulk quantities shipped via sea or air freight, while smaller orders are delivered through express couriers (EMS, DHL, UPS, FedEx).
コンタクトパーソン: Mr. Devin Wang
ファックス: 86-318-7896133
