Premium Copper Wire Mesh Double Round Knitted Wire Mesh

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

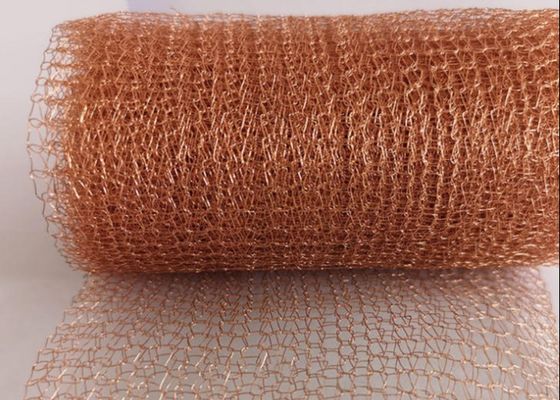

大画像 :  Premium Copper Wire Mesh Double Round Knitted Wire Mesh

商品の詳細:
起源の場所: 中国
ブランド名: Qijie
証明: copper wire mesh
モデル番号: 銅線網
お支払配送条件:
最小注文数量: 100pcs
価格: Discuss
パッケージの詳細: 紙箱
受渡し時間: 15~18日
支払条件: L/C、T/T
供給の能力: 1500pcs
詳細製品概要
材料: 銅線 ワイヤーの直径: 0.16mm
幅: 60mm
ハイライト:

copper wire mesh double round

,

knitted wire mesh premium copper

,

metal wire mesh with warranty

Premium Copper Wire Mesh Double Round Knitted Wire Mesh



Stainless steel knitted wire mesh for demister pad Introduction:
gas-liguid Separator, also known as the mist, a special form of woven wire mesh, it is a major component of the production of screen, other than demister, oil-gas separator, dust, environmental protection, engine silencers, mechanical damping.

Material: stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L,;other galvanized wire, redrawing wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire.

Wire diameter: 0.10 ~ 0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole size: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.

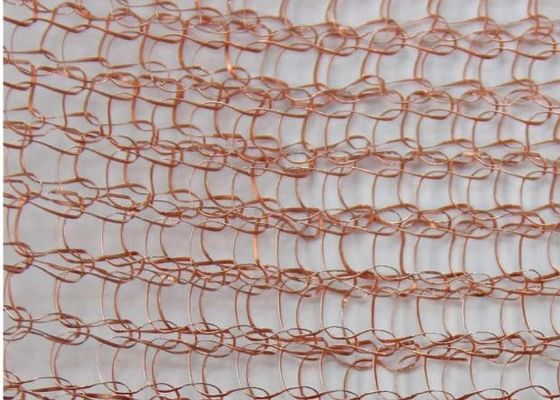

Premium Copper Wire Mesh Double Round Knitted Wire Mesh 0





Stainless steel knitted wire mesh for demister pad Specifications
AVAILABLE MATERIALS / ALLOY
STAINLESS STEEL: 304, 304L, 316L 430, INCONEL, MONEL,COPPER, BRASS,ALUMINUM,MILD STEEL (PLAIN & GALVANIZED)
WIRE DIAMETER
0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
ROLL WIDTHS
40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
HOLE SIZES
4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Recommendations:
Below is a list of our recommendations based on various knitted wire mesh needs.
* For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
* For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
* For maximum flexibility, we recommend the 0.006” wire diameter.
* For extremely high temperature applications, we recommend the crimped mesh. Although it is reduced in coverage, the crimped mesh allows for a slight air gap in extremely high temperature applications as well as counteracts the tendency of the material to toll back when cut.
* For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.

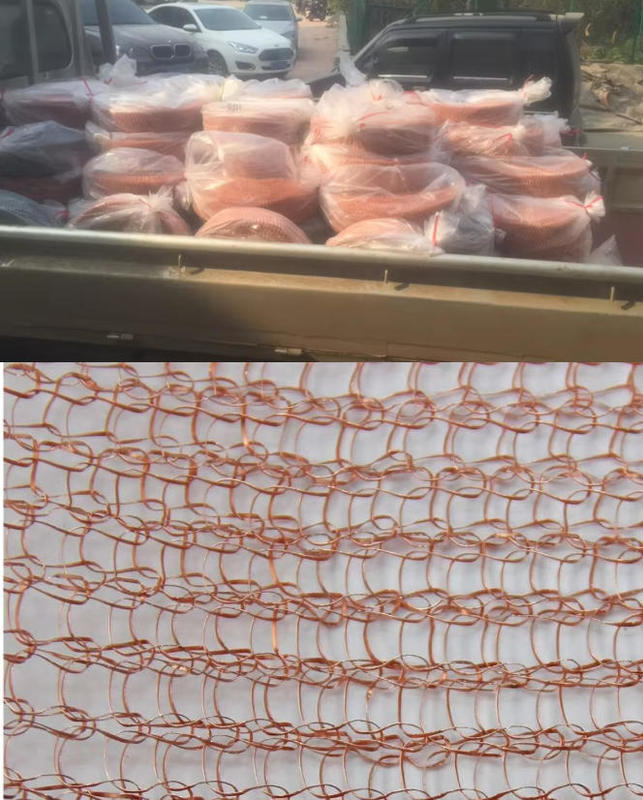

Premium Copper Wire Mesh Double Round Knitted Wire Mesh 1



Stainless steel knitted wire mesh Application:

It mainly used for processing demister, for separating gases inside the droplet, also be extrusion molding, for manufacturing a filtration device, in the automotive industry, the electronics industry has also been widely used.
