Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine

Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine

大画像 :  Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine

商品の詳細:
起源の場所: 中国
ブランド名: Qijie
証明: Wire Mesh Circular Knitting Machine
モデル番号: ワイヤーメッシュ丸編機
お支払配送条件:
最小注文数量: 100pcs
価格: Discuss
パッケージの詳細: 木製ケース、パレット
受渡し時間: 15~18日
支払条件: L/C、T/T
供給の能力: 15pcs
詳細製品概要
関数: ワイヤーメッシュ丸編機 ワイヤー: 0.17mm
幅: 5cm
ハイライト:

semi automated wire mesh machine

,

electromagnetic shielding knitting machine

,

circular knitting wire mesh machine

Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine





Model YC-100
Needle cylinder diameter 0.5-34 inches
Needles 6-302 needles
Needle cylinder speed 1500r/min
Main motor 0.37KW-1500kw/220V-240V
Curly traction motor power 60w
Main drive motor is controlled by frequency converter 0-750 r/min
Curly traction motor is controlled by frequency converter 0-75 r/min
Machine capacity 6m/h
Machine size 60*100*110cm
Net Weight 110kg

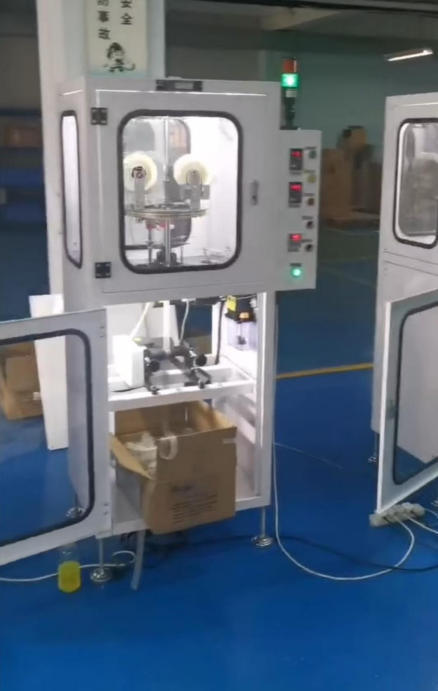

Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine 0

For strict demands on shielding effectiveness and visual transparency in display windows, shielding meshes were developed that display absolutely uniform black coloration and high damping values. An array of wire meshes made of copper or bronze are available for shielding electromagnetic waves in rooms and non-optical systems.

For applications in the field of shielding technology, we produce special meshes for optical applications, wire mesh for installation in composite materials or other material systems, as well as metal meshes for use in the construction industry.

Brass wire: copper 65%,zinc35%

Purple copper wire: copper 99.8%

Phosphorus copper wire :copper 85%-90%,tin 5%-15%



Product Features
All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail.

Materials are available intin-plated phosphor

bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/ Brass), Monel, and aluminum(Al).

Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity.
Selection shape
Solid Round Type
Solid Rectangular Type
Hollow Round Type
Solid Round with Fin Type



Hollow Round with Fin Type





  Mesh/inch Wire dia(mm/inch) Aperture(mm)















Stainless steel wire mesh

100 0.089/0.0035 0.17
110 0.1060/0.0040 0.1295
120 0.0904/0.0037 0.1168
150 0.0660/0.0026 0.1041
160 0.0635/0.0025 0.0965
180 0.0584/0.0023 0.0838
200 0.0533/0.0021 0.737

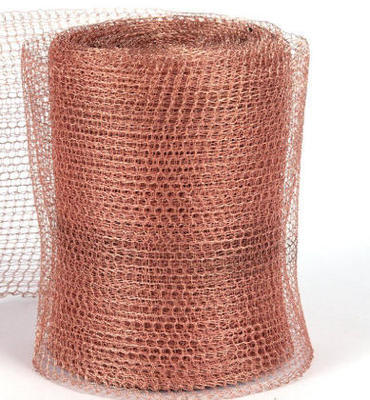

Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine 1



Production range:

Width: Standard 1M, Special requirement is accepted.

Length:30M/roll

Size:Standard 60/100/150 mesh/inch

Faraday cage shielding stainless steel wire mesh Product Description

• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc

• Weave: plain, twill, dutch

• Mesh: 1-2800 mesh

• Application: EMI/RFI shielding, Faraday cages, RF window,

• Specification list for faraday cage shielding stainless steel wire mesh



Packaging & Shipping

Packaging:

1. Wrapped With Plastic Film Inside and outside with the woven bag.

2. Wrapped With Plastic Film Inside and outside with the hessian bag.

3. according to your requirements.



Shipping:

Samples will be shipped by express service - DHL, EMS, UPS, TNT or FedEx.

1, By carrier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;

2, By air to the airport, usual 3-5 days arrives;

3, By sea to the seaport, usual 25-45 days.

Our Services

Price : we have a reasonable price for the quality of the goods

Lead time: around 15 days/ 10 tons based on the special situation around the word.

Payment term: Trade assurance Order within Alibaba, T/T, L/C, Credit Card, E-checking, Paypal, Pay in RMB.

Delivery: within the fastest speed of delivery

After-sales services: 1. we support the video online help, 2. Immediately to solve the

problem you have within 24 hours. 3. 24hours online, free taking with 4. our people will go to your place to solve the issues if this necessary, 5, care plus: we can guarantee the goods within certain years, if not we will resend the new one for you no matter how much it is.

For workers: we do have medical insurance and mutual benefits for the workers.



 Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine 2
