商品の詳細:
お支払配送条件:
|
| 材料: | アルミニウムの、電流を通された鋼線 | 製品名: | グリップの支柱の格子 |
|---|---|---|---|
| タイプ: | エッチングするか、または押す穴があいた網 | 技術: | 穴あき |
| 織りスタイル: | 、打たれる打ち抜かれる、打つ | 穴の形: | 円形、ダイヤモンド、等の八角形プラム花 |
| 表面処理: | 吹き付け塗装/吹き付け塗装/浸る電流を通される過フッ化炭化水素のコーティング、熱い電流を通されるおよびfluorocaを | 色: | すべての色の破片は、白い、銀製青い、金持っている |
| 製品名: | 六角形の穴があいた金属板、拡張できるsdiamondの網 | 厚さ: | 0.5-8mm、0.3MM- 8MM |
| 特徴: | 耐食性、格好良い、良質、耐久性、酸耐性、抗抵抗 | 幅: | 1mか1.22m、1.22 mまたはそれ以下に |
| 使用法: | 、オイル/エア フィルター装飾的な、等食糧 | 長さ: | 2mまたは2.44m |
| サイズ: | カスタマイズされたサイズ、標準 | 形: | 正方形は円形か正方形の形、丸型、楕円形、六角形に、切ることができる |
| ピッチ: | 要求として1.0mm-100MM、または。 | メール: | devin@industrialmetalmesh.com |
| WhatsAPPについて: | +8615369013183 | ||
| ハイライト: | Grip Strut safety grating 12 gauge,5-diamond plank grating 2-1/2 depth,Grip Strut diamond grating with warranty |
||

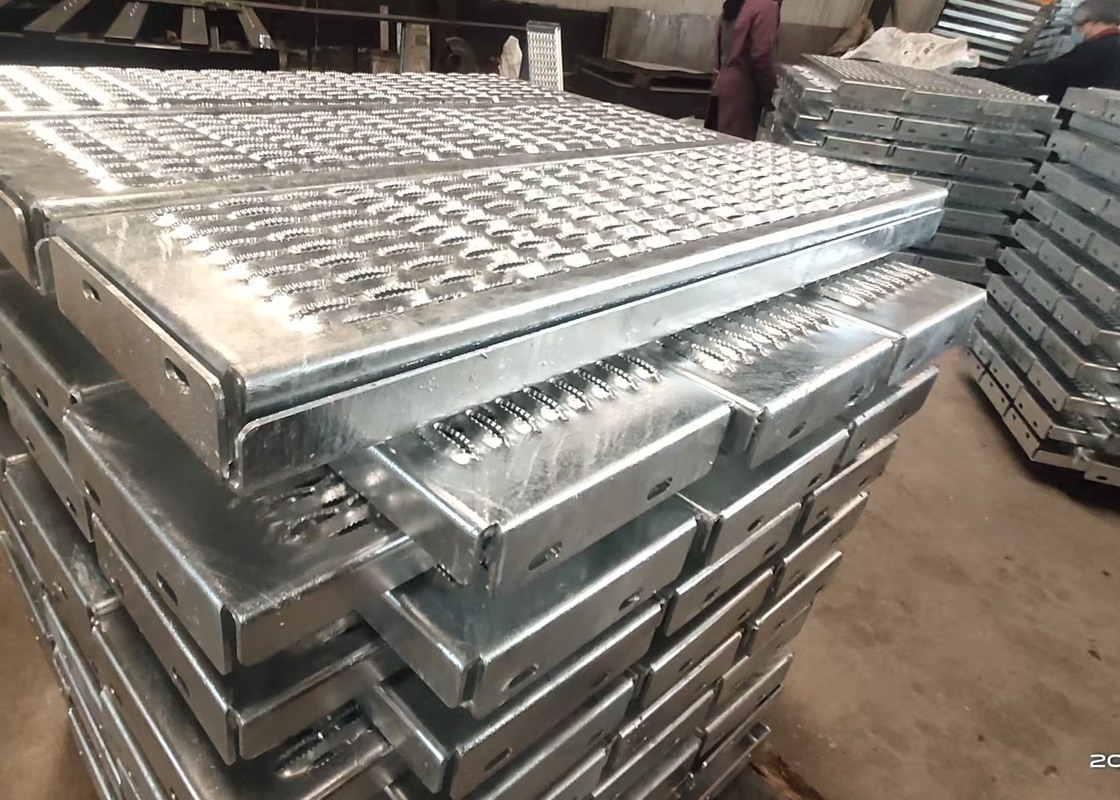

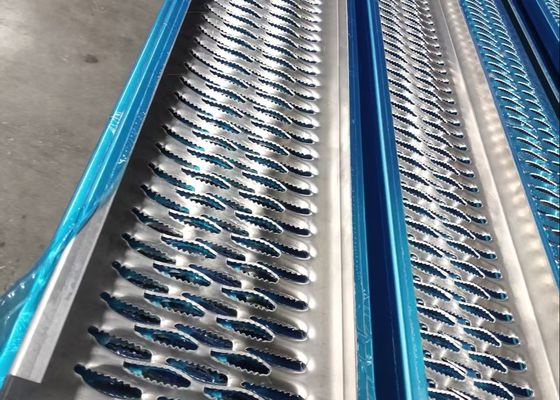

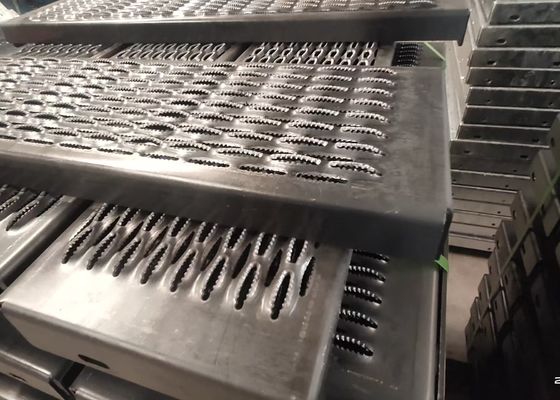

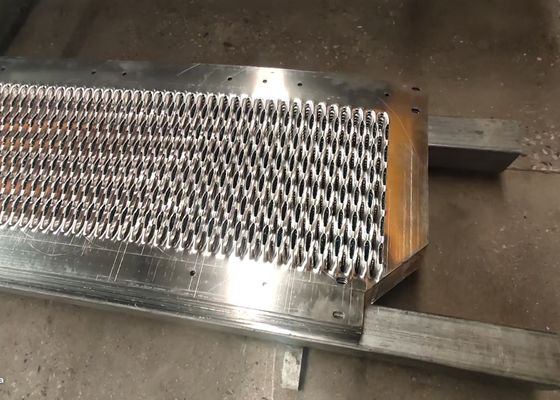

Grip Strut Safety Grating 5-Diamond Plank (2-1/2” Depth, 12 Gauge, 11-3/4" Width) - 52512 Galvanized
Grip Strut Safety Grating plank is an excellent slip resistant material that is low in material cost, as well as installation cost. This planking, at 2-1/2" deep x 12 gauge and 11-3/4" wide (5 diamond), provides maintenance-free open design for drainage of fluids, chips, grease, mud and snow. The serrated surface grips soles securely-in all directions-in practically every place. High strength-to-weight performance is achieved through depth of section and structural design. Light and easy to handle, this helps in quick installation, that usually can be handled by one person. Available in pre-galvanized and hot rolled pickled and oiled (HRPO). Standard lengths are 10' and 12', with the ability to run up to 24' on certain sizes. Please check with your P&R representative for more information.
Grtp Strut Grating Plank,Diamond Safety Grating Walkway,Diamond Safety Grating Stair Treads,Anti-skid Stair Treads,
Traction Tread Safety Grating Plank,Perforated Safety Grating,Stable Tread Safety Grating,Interlock Safety Grating Plank,
This product has passed ISO9001 international quality system certification.
specification about anti-skid perforated panel/antiskid plate :
Materials: Aluminum Alloy Plate, Staniless Steel Plate, Carbon Steel Plate, etc.
Surface: SS, hot dipped galvanized, electro-galvanized.
Shaped hole: alligator mouth hole, round, drum-type and so on
Thickness: 0.8mm-6.0mm
Width: 0.3m-1.5m
Length: 1m-6.5m
Production process of crocodile mouth skid plate: Generally, shearing bending-welding-forming according to different
purposes (iron plate can be used for hot-dip galvanizing and anti-rust treatment) This product has good anti-slip effect, long
service life and beautiful appearance. Characteristics
Perforated Diamond Metal Grtp Strut GratingSpecification
Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
Applications of Grip Strut Plank
Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.
Characteristics of the perforated Grtp Strut Grating:
With non-slip, anti-rust, anti-corrosion, durable features and beautiful appearance. Punching hole type with raised herring
bone, raised crosswise, round, crocodilelips type, tear-type. These hole types are all CNC punching holes.
Advantages of grip strut grating
Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.
• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.
• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.
• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.
• These light weight yet brawny panels permit substantial reduction in structural steel requirements.
Feature advance:
1, low cost, zinc plate is cheaper compare to after hot dipped galvanized
2, easy install, but need think about carrying capacity
3, anti-skid effect is best, there are 14 teeth around one hole, getting hold of the shoes sole when you stand in walkway.
4, low maintain cost.
|
|
|
|
|
|
